Polyurethane Tubing and Belts

Request Quote

Polyurethane Tubing and Belts Model Specifications

» High friction, non-marking material	» Round, flat, intricate shapes and profiles
» Available in variety of colors and durometers	» Perfect (no grinding) surface finish

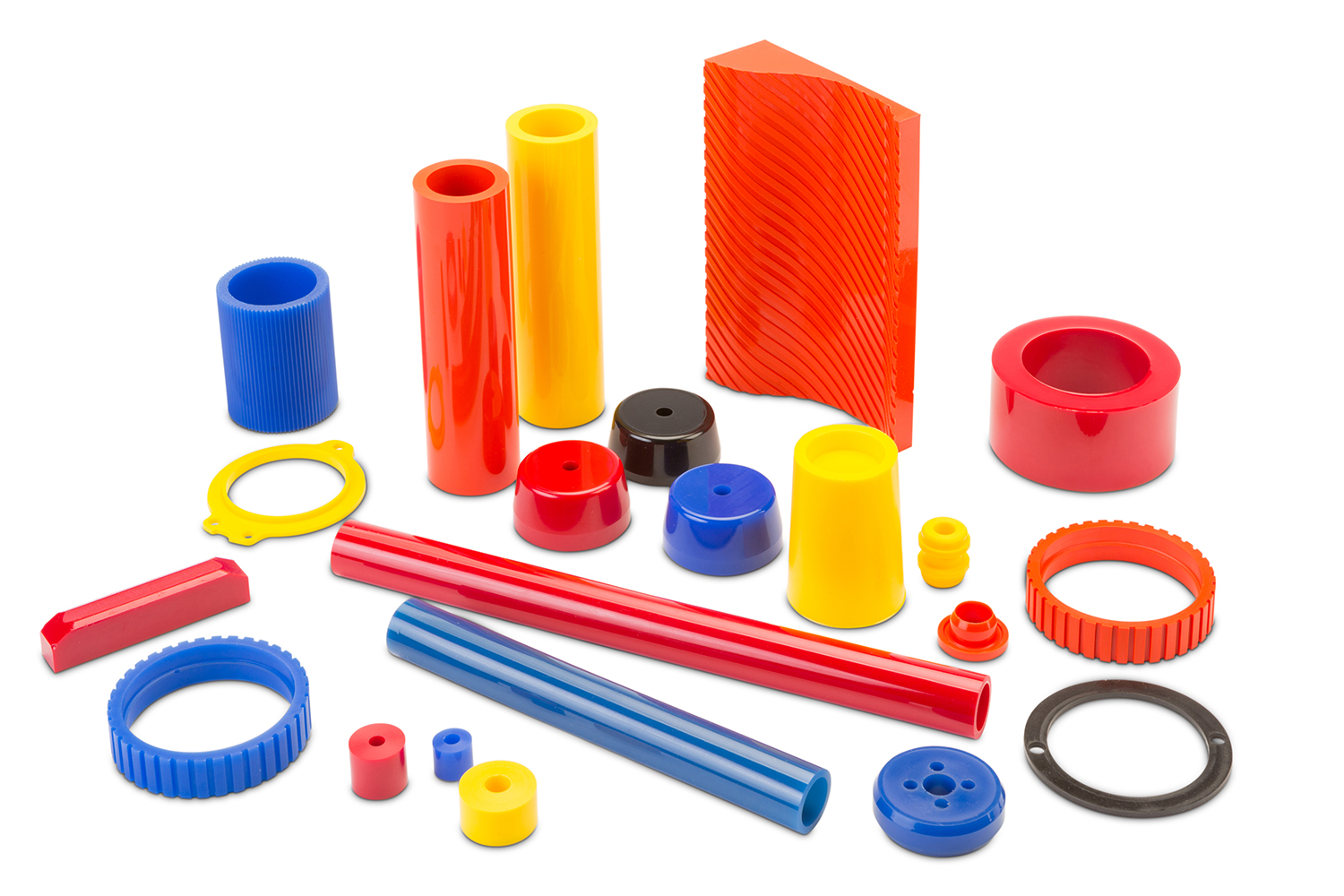

Coated rollers and shafts are not the only polyurethane products that Meridian Laboratory specializes in. We also manufacture stand-alone polyurethane tubes, belts, and other products without a core or bonded material.

The same high friction, precision tolerance, and high wear polyurethane that we mold as precision drive wheels can be produced into a low-cost, coreless polyurethane tube. Polyurethane tubes are an economical solution to adding a non-marking, durable, coating to an existing shaft or product. This is an excellent way to add part protection to conveyor rollers and drive rollers without the added expense of a coated roller. ML6 polyurethane tubes can be easily pressed onto shafts, and when worn easily removed and replaced. These tubes are made with the same ID and OD tolerances as our rollers (+/-0.001”), with a perfect surface finish and no grinding. ML6 tubes can be made to any size ID/OD and are always cut to length for your application, up to 30” in length.

About
Options

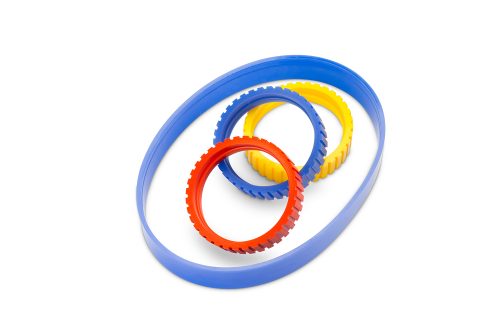

ML6 polyurethane belts are a great alternative to the traditional poly cord. We manufacture belts to exact circumferences in any width for your specific application. ML6 belts offer the same great friction and low wear benefits, but without the drawback of having a weld seam. Meridian Laboratory belts are seamless and can be used at much higher tension than typical belts. This combined with the high friction characteristic of ML6 polyurethane provides for greater friction and less slippage in the mechanism.

Many customers also use precision polyurethane ML6 for applications which are not traditionally a tube or a belt, but simply as a non-marking and durable material that is highly customizable, providing low volume, cost-effective solutions. Customers often use polyurethane ML6 as a gasket, seal, or bumper material including flat, round, and other shapes and profiles.

Durometers
Colors
Material Properties

Hardness Options

40A, 55A, 70A, 80A, 90A, 75D

Click to learn more about durometers

Custom colors available on request

	ML6-40A	ML6-55A	ML6-70A	ML6-80A	ML6-90A	ML6-60D	ML6-75D
Specified Durometer	40A	55A	70A	80A	90A	60D	75D
Hardness Range	35 - 45	50 - 60	72 - 78	75 - 85	85 - 95	55 - 65 (Shore D)	65 - 75 (Shore D)
Abrasion Resistance (Rotary Drum) Volume Loss (mm²)	N/A	75.51 - 92.29	59 - 96	40.95 - 50.05	43.74 - 53.46	91.8 - 112.2	N/A
Ultimate Elongation (%)	423 - 517	414 - 506	0 - 0	522 - 638	378 - 462	391.6 - 470.8	226.6 - 273.9
Stress at 100% Elongation (PSI)	175.5 - 214.5	319.5 - 390.5	408 - 515	612 - 748	1291.5 - 1578.5	3272.5 - 3533.2	5592.4 - 5957.6
Stress at 300% Elongation (PSI)	355.5 - 434.5	670.5 - 819.5	536 - 1371	1309.5 - 1600.5	3177 - 3883	4587 - 6052.2	N/A
Tensile Strength	1368 - 1672	4293 - 5247	3792 - 7176	6772.5 - 8277.5	7272 - 8888	5813.5 - 7333.7	7883.7 - 8176.3
Tear Strength, pli Die "C"	144 - 176	238.5 - 291.5	285 - 416	423 - 517	612 - 748	757.9 - 820.6	960.3 - 961.4
Split	13.5 - 16.5	39.6 - 48.4	26 - 79	79.2 - 96.8	143.1 - 174.9	282.7 - 424.6	234.3 - 256.3
Compression Modulus (Young's Modulus)	N/A	N/A	N/A	N/A	N/A	23545.8 - 28778.2	53988.3 - 65985.7
Compression Set (% 22 Hrs. @ 158ºF)	N/A	5	16.2 - 19.8	26	26	37.8 - 46.2	N/A
Bashore Rebound (%)	38.7 - 47.3	19.8 - 24.2	20-31	23.4 - 28.6	24.3 - 29.7	52.2 - 63.8	54.9 - 67.1

For more information, contact Meridian Laboratory

Advantages

Click to discover more information on each of these incredible benefits

Applications

Gaskets and seals
Polyurethane tubing
Tractor and feeder belts for mailroom equipment
Vibration mounts and dampeners

Why Choose ML6? Request a ML6 quote

Contact Meridian Laboratory – Custom solutions with no minimum order quantity, delivered in as little as 5 days!
