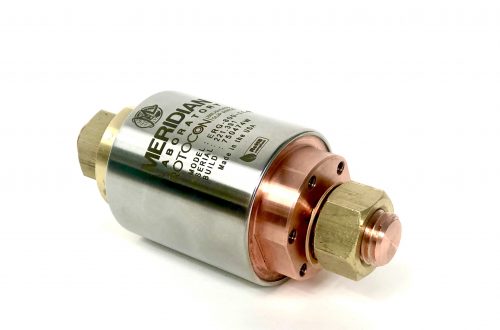

  • ROTOCON ERG-800-11 Rotary Ground with RoHS compliant feature
  • ROTOCON ERGT-500-1970-AA Through Hole Rotary Ground
  • Custom rotating electrical ground
  • ROTOCON ERG-400 Single Contact Rotary Ground with Custom Adapters

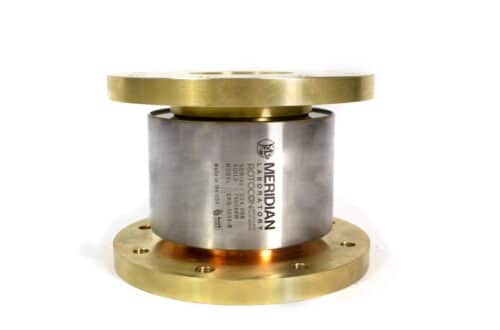

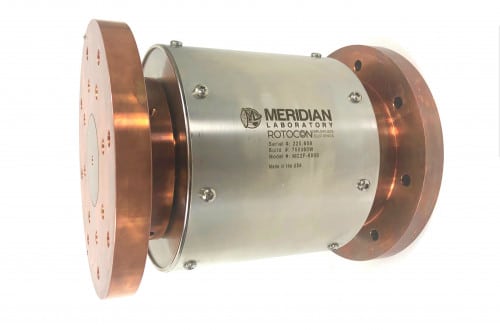

  • 3000 Amp Rotating Electrical Ground

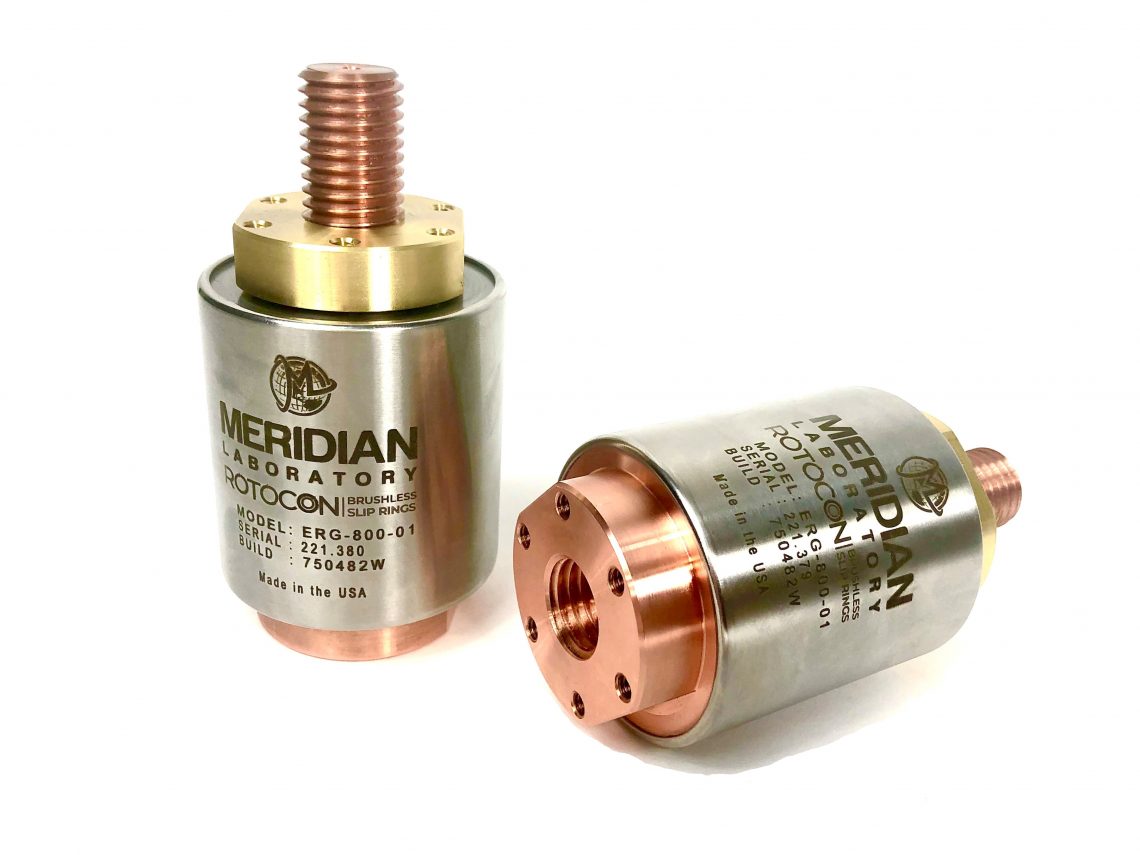

  • 800A Welding Electrical Rotary Ground
  • High Current Welding Ground

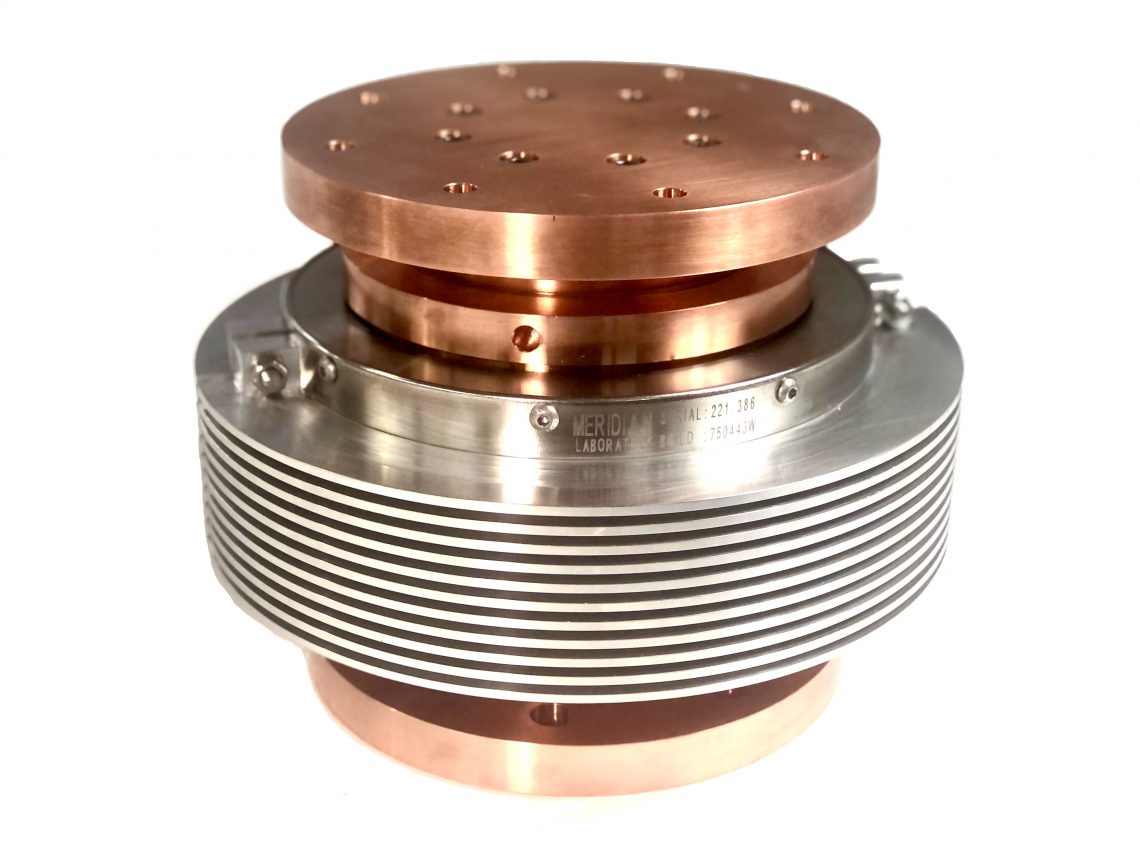

  • ROTOCON ERG-10000 Electrical Rotary Ground with heat sink
  • High Amperage Rotary Welding Ground
  • Brushless Rotary Ground Clamp

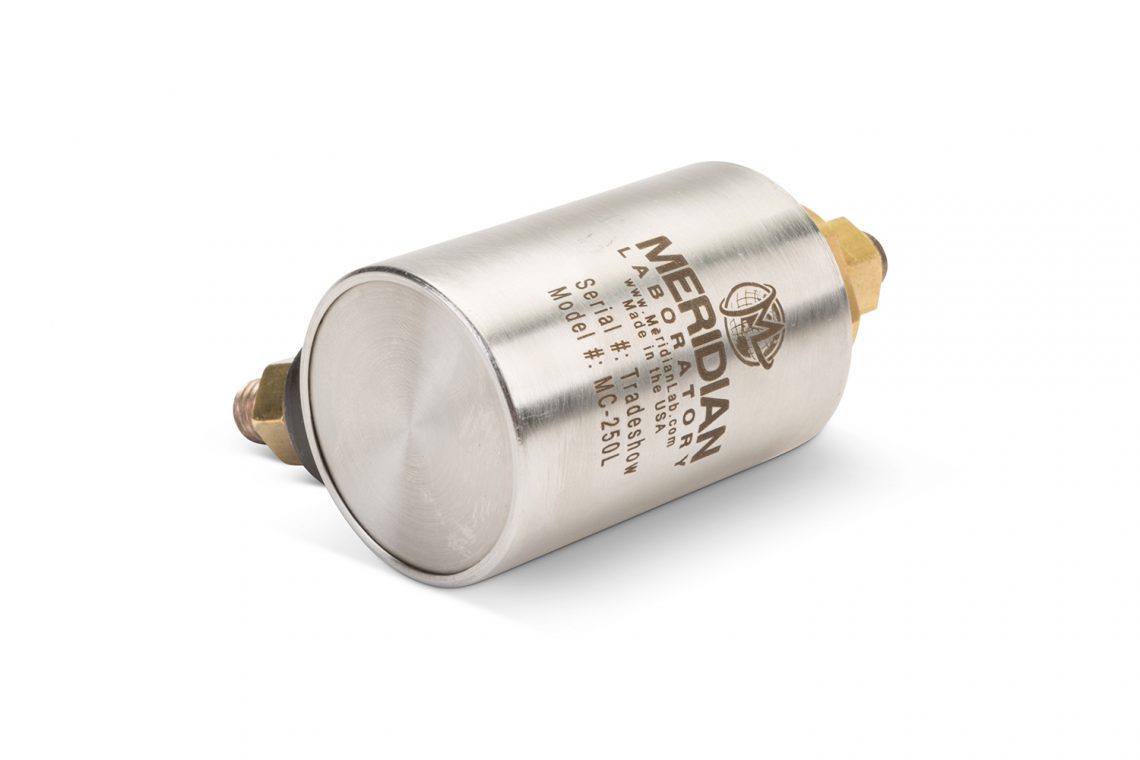

  • ROTOCON MC Series Rotary Ground Drawing
  • 500A rotary ground
  • High Current Rotary Ground
  • Through-hole rotary welding clamp
  • Through-hole rotary welding clamp
  • Brushless Rotary Welding Ground
  • High Current Rotary Welding Ground
  • High Current Plating Ground
  • High Current Rotary Clamp
  • High Current Rotary Ground Clamp
  • High Current Plating Ground
  • copper rotary ground
  • High Current Rotary Ground
  • Rotary Ground
  • High Current Rotary Welding Clamp
  • Meridian Laboratory Rotary Ground
  • High Current Rotary Circuit
  • Rotary Ground Clamp
  • Rotary Ground
  • ROTOCON MCT-100-4MM Gold Plated Through Bore Rotary Ground
  • Maintenance Free Rotary Welding Ground
  • Custom rotating electrical ground with through-hole rated to 250 amps
  • Maintenance Free Rotary Ground Clamp
  • High Amperage Rotary Ground
  • Rotary Plating Contact
  • Brushless Ground Clamp

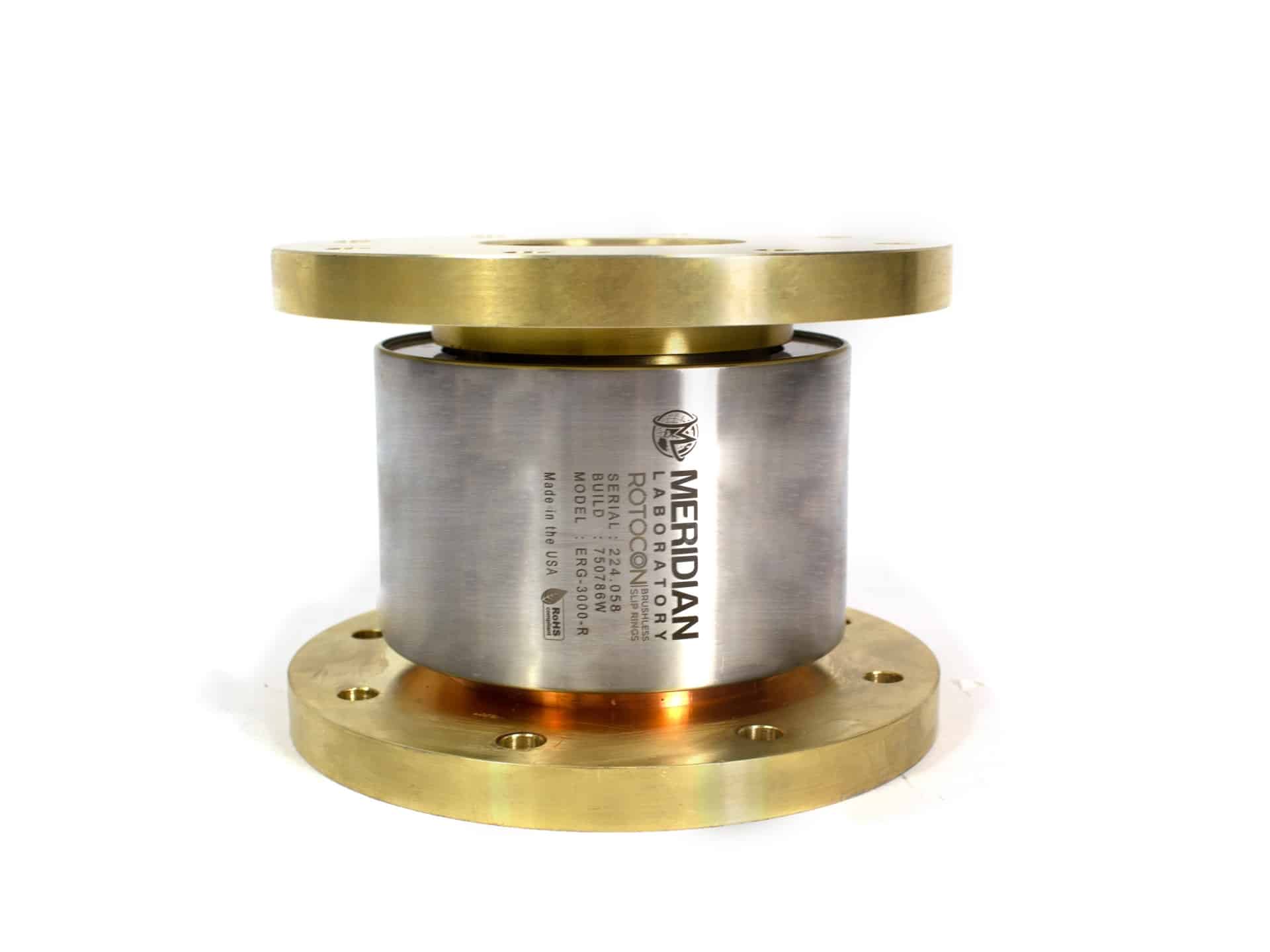

  • ROTOCON ERG-3000-R RoHS Compliant Rotary Ground
  • High Current Rotary Ground
  • ROTOCON ERG-400 Single Contact Rotary Ground with Custom Adapters
  • ROTOCON ERG-1200 RoHS Compliant Rotary Ground
  • Electrical Rotary Welding Ground
  • 400A Rotary Ground Clamp
  • ROTOCON ERG-400-21 Electrical Rotary Ground with Flange
  • Meridian Laboratory Rotary Ground
  • Welding Rotary Ground

Innovative, Maintenance-Free High Current Rotary Grounds

»  Provides consistent low and stable resistance for high current applications»  Robust industrial design provides reliable long lasting performance
»  Requires ZERO grease or routine maintenance»  Remains unaffected by RPM or total number of revolutions

Meridian Laboratory’s series of ROTOCON rotary grounds provide a stable, consistent, and maintenance-free, rotating electrical contact generally used for higher current applications.

ROTOCON rotary grounds are unaffected by instantaneous RPM (for high-speed applications) or the total number of revolutions – ROTOCON rotary grounds oftentimes surpass 500M (million) revolutions without a change in electrical resistance or maintenance/adjustment requirements.

Contrary to conventional brushed rotary grounds and clamps, ROTOCON ERG/MC Series are contactless, deliver stable and consistent current – eliminating fluctuations in current delivery and allowing for higher throughput with more consistency.

All high current ROTOCON rotary grounds are environmentally sealed with 304SS corrosion proof housings to ensure a long service life without maintenance, even in the most challenging manufacturing environments and chemical exposure.

They are also offered with options for RoHS compliance, if necessary.

Meridian Laboratory also offers customized rotary grounding solutions to meet your exact specification, see some examples of custom ROTOCON Rotary Grounds here.

Tired of poor rotary ground consistency? Consistently having to grease and maintain a metal-on-metal rotary ground? Is fluctuating resistance causing variable consistency in your process, leading to scrapped product?  If you are experiencing any of these problems associated with traditional rotary grounds, a ROTOCON rotary ground is the solution.

Video: ROTOCON ERG – Electrical Rotary Ground Contact Resistance Demonstration

YouTube video

Suitable for all environments and applications including rotary welding, electro-plating, electro-polishing, cutting, and other high current rotating industrial applications, the ROTOCON ERG/MC & ERGT Series are designed to withstand 100% duty cycles in continuous manufacturing and production processes, without interruption or downtime. The ROTOCON’s brush-free design eliminates all issues such as maintaining brush contact and conductivity, does not require application of conductive greases, and eliminates elevated contact resistance associated with conventional brushed rotary grounds. With the ERG Series, you will achieve a more consistent ground, with zero fluctuations in resistivity, or elevated contact resistance over time and revolutions; this will lead to a better end product in rotational welding, plating, polishing, and other high current applications that require rotation.  ROTOCON rotary grounds can be used interchangeably on the positive or negative (ground) of an application without any difference in performance.

Video: ROTARY GROUND SHOOTOUT : SUMNER ST-107, LENCO MODEL C, TWECO RG-140 VS. MERIDIAN LABORATORY ROTOCON® ERG-400 ROTATING ELECTRICAL GROUND

YouTube video

RPMModel dependent, see model specifications below*
MOUNTINGEnd of shaft with threaded stud or flange, or with set screws onto shaft (through-hole ERGT Series) Click here for installation and best practices video.
HOUSING304 Stainless Steel
OPERATIONCan be operated in any direction or orientation
MAINTENANCEFeatures permanently lubricated bearings, brush-free design requires no user maintenance
AMPERAGEModel dependent, see specifications chart - 100% overload allowed for <60 seconds
FREQUENCYDC to 1GHz - Contact Meridian Laboratory for ampacity ratings at higher frequencies
STATIONARY CONTACT RESISTANCE<0.01mΩ
ROTATING CONTACT RESISTANCESame as stationary contact resistance (<0.1mΩ)
ELECTRICAL NOISE<0.01uV
OPERATIONIntrinsically immune to internal arcing
AMBIENT TEMPERATURENot to exceed 160˚F (70˚C)
IP RATINGStandard is IP65, Available up to IP68
RoHS COMPLIANCEOptional, RoHS /CE Compliancy Available

Applications

  • Rotary welding
  • Electro-plating
  • Rotary cutting
  • Rotary magnetrons/sputtering deposition
  • Cable reels
  • Electro-polishing
