Manufactured In Aluminum Or Stainless Steel As Well As Plastics And Other Non-Metallic Materials

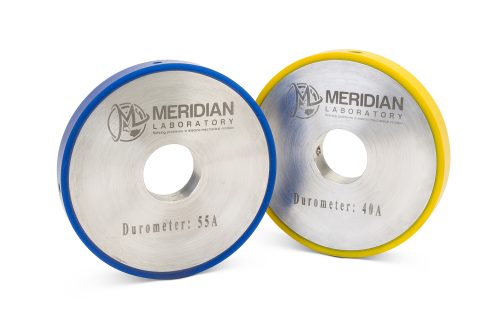

Hubless Polyurethane Coated Drive Rollers

Request Quote

Hubless Polyurethane Coated Drive Rollers Model Specifications

» Single piece to high volume quantities supported» Fast and reactive turnaround times to meet your needs
» High quality and repeatable results, time after time » Dedicated and creative engineering support to ensure project needs are met

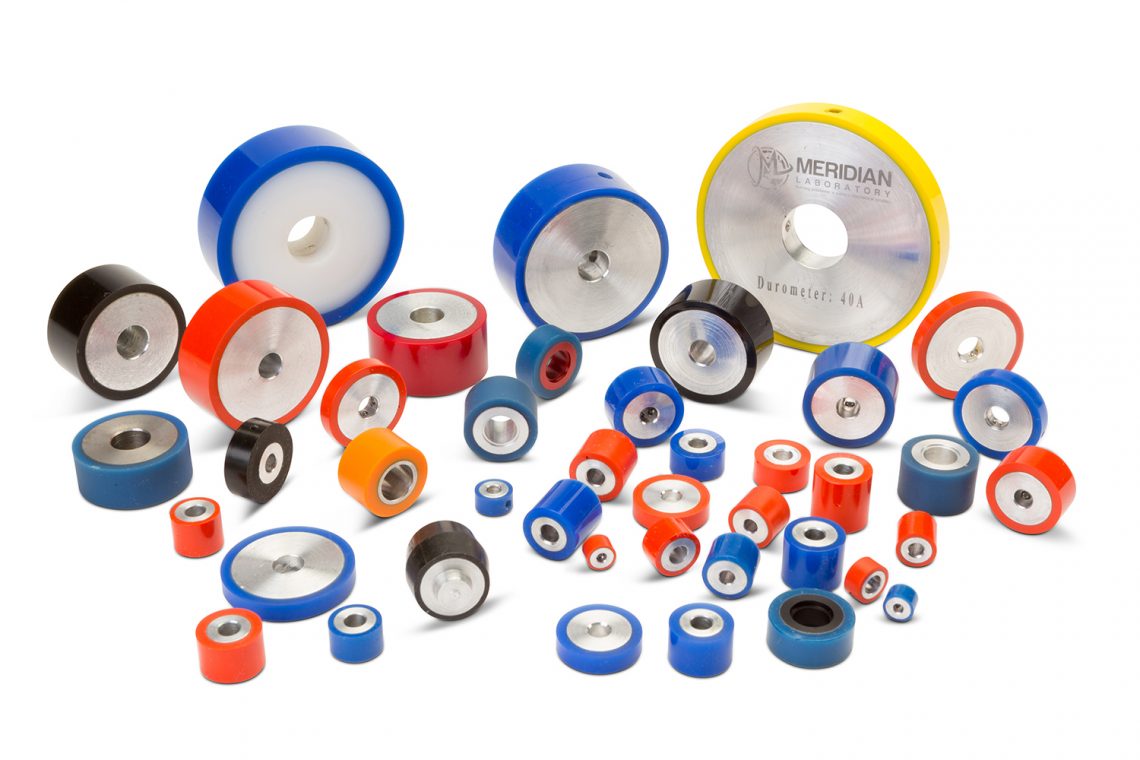

Meridian Laboratory ML6 precision polyurethane hubless drive rollers are ideal for situations and applications which are space sensitive or where you wish to maximize the contact surface of rollers against its contact material. Standard sizes are available in cores made of 6061 aluminum or 304 stainless steel but are offered as well in plastics and other non-metallic materials.  Meridian Laboratory’s ML6 hubbed polyurethane drive rollers and wheels are molded with tolerances of 0.0015” or better, they are available in a variety of standard sizes and custom profiles as well.  Also, see our complete lineup of hubbed drive rollers.

Custom sizes and profiles are available very affordably, with turnaround times in as little as 5 days.

ML6 polyurethane drive wheels are available in a variety of sizes, colors, and durometers to meet any of your most demanding requirements. Click here to shop online.

Why Precision Matters

While it’s easy to think “it’s just a roller”, it’s even easier to lose sight of how much you ask of your rollers and wheels, day in and day out. Keeping your operations running with a minimum of downtime for machine repairs, feed jams, tuning of encoder wheels, or other time wasters (and money costers) means upgrading to superior components for your application. If you expect and demand that your equipment do more, ML6 offers a proven upgrade you’ll notice immediately.

Video: The Importance of Total Indicated Runout When Selecting Polyurethane Rollers

YouTube video

In this short video above, discover one (of many) reasons a more durable, precision roller can have a huge impact on your manufacturing environment.

Hardness Options
40A, 55A, 70A, 80A, 90A, 75D

Click to learn more about durometers

Custom colors available on request

ML6-40AML6-55AML6-70AML6-80AML6-90AML6-60D
Hardness (+/- 5)40A55A70A80A90A60D
Ultimate Elongation (%)640540540640500300
Ultimate Tensile (PSI)320053005600690062006400
Tear Strength, pli Die "C"150244332421568620
Split195192175134125
Compression Modulus (Young's Modulus)38083016601990646016200
Compression Set (%
22 Hrs. @ 158ºF)
017161830
Bashore Rebound (%)504137313552
Abrasion Loss, mm20022415994101115

For more information, contact Meridian Laboratory

Applications

  • Mailroom equipment
  • Press room manufacturing and production equipment
  • Paper feeders
  • Plastic film extrusion equipment
  • Automated packaging machinery
  • Nuclear fuel rod insertion
Hubless Polyurethane Rollers

Standard Hubless Polyurethane Drive Wheels

HublessRollers 2022

Part #
(Specify Durometer as 'D')
Durometer
(Specify as 'D' in Part #)
Roller Diameter (OD)Roller Width (WD)Bore Diameter (ID)Core Diameter (CD)Set Screws
AL-820-D40A | 55A | 70A | 80A | 90A | 75D0.375"0.250"0.125"0.3125"4-40 (1x)
AL-821-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.250"0.1875"0.390"6-32 (1x)
AL-822-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.250"0.250"0.390"6-32 (1x)
AL-823-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.375"0.1875"0.390"6-32 (1x)
AL-824-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.375"0.250"0.390"6-32 (1x)
AL-825-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.500"0.1875"0.390"6-32 (1x)
AL-826-D40A | 55A | 70A | 80A | 90A | 75D0.500"0.500"0.250"0.390"6-32 (1x)
AL-827-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.250"0.1875"0.500"6-32 (1x)
AL-828-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.250"0.250"0.500"6-32 (2x)
AL-830-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.375"0.1875"0.500"6-32 (1x)
AL-831-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.375"0.250"0.500"6-32 (2x)
AL-832-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.500"0.1875"0.500"6-32 (1x)
AL-833-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.500"0.250"0.500"6-32 (2x)
AL-834-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.625"0.1875"0.500"6-32 (2x)
AL-835-D40A | 55A | 70A | 80A | 90A | 75D0.625"0.625"0.250"0.500"6-32 (2x)
AL-836-D40A | 55A | 70A | 80A | 90A | 75D0.750"0.375"0.250"0.500"6-32 (2x)
AL-837-D40A | 55A | 70A | 80A | 90A | 75D0.750"0.500"0.250"0.500"6-32 (2x)
AL-838-D40A | 55A | 70A | 80A | 90A | 75D0.750"0.625"0.250"0.562"6-32 (2x)
AL-840-D40A | 55A | 70A | 80A | 90A | 75D0.750"0.750"0.250"0.500"6-32 (2x)
AL-841-D40A | 55A | 70A | 80A | 90A | 75D1.000"0.250"0.250"0.750"6-32 (2x)
AL-842-D40A | 55A | 70A | 80A | 90A | 75D1.000"0.500"0.250"0.750"8-32 (2x)
AL-843-D40A | 55A | 70A | 80A | 90A | 75D1.250"0.250"0.3125"1.000"6-32 (2x)
AL-844-D40A | 55A | 70A | 80A | 90A | 75D1.250"0.750"0.3125"1.000"8-32 (2x)
AL-845-D40A | 55A | 70A | 80A | 90A | 75D1.625"0.250"0.375"1.375"8-32 (2x)
AL-846-D40A | 55A | 70A | 80A | 90A | 75D1.625"0.750"0.375"1.375"10-32 (2x)
AL-847-D40A | 55A | 70A | 80A | 90A | 75D2.000"0.250"0.375"1.750"8-32 (2x)
AL-848-D40A | 55A | 70A | 80A | 90A | 75D2.000"0.750"0.375"1.750"10-32 (2x)
AL-850-D40A | 55A | 70A | 80A | 90A | 75D2.500"0.375"0.500"2.25"10-32 (2x)
AL-851-D40A | 55A | 70A | 80A | 90A | 75D2.500"1.000"0.500"2.25"1/4"-28 (2x)
Custom / MetricNot seeing what you need? Contact Meridian Laboratory – standard and custom solutions with no minimum order quantity, delivered in as little as 5 days!
