Precision ML6® No Crush & Zero Crush Wheels & Rollers

Polyurethane No Crush | Zero Crush Wheels

Request Quote

Polyurethane No Crush | Zero Crush Wheels Model Specifications

» Precision dimensional tolerances with low runout» Industry-leading bond strength
» Wheels are designed to bow and protect materials being driven» Reduced wear and increased longevity of contact surfaces

No Crush Wheels, Zero Crush Rollers, Bottle Spacer Wheels, Metering Wheels, Spider Wheels, Hold Down Wheels – No Matter the Terminology, Meridian Laboratory Has Your Solution!

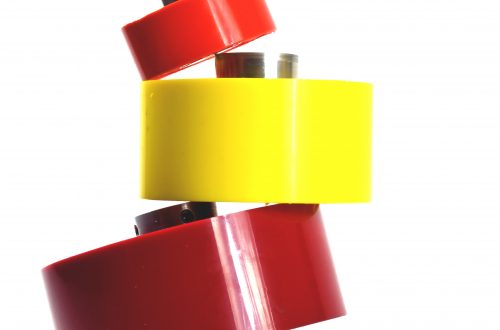

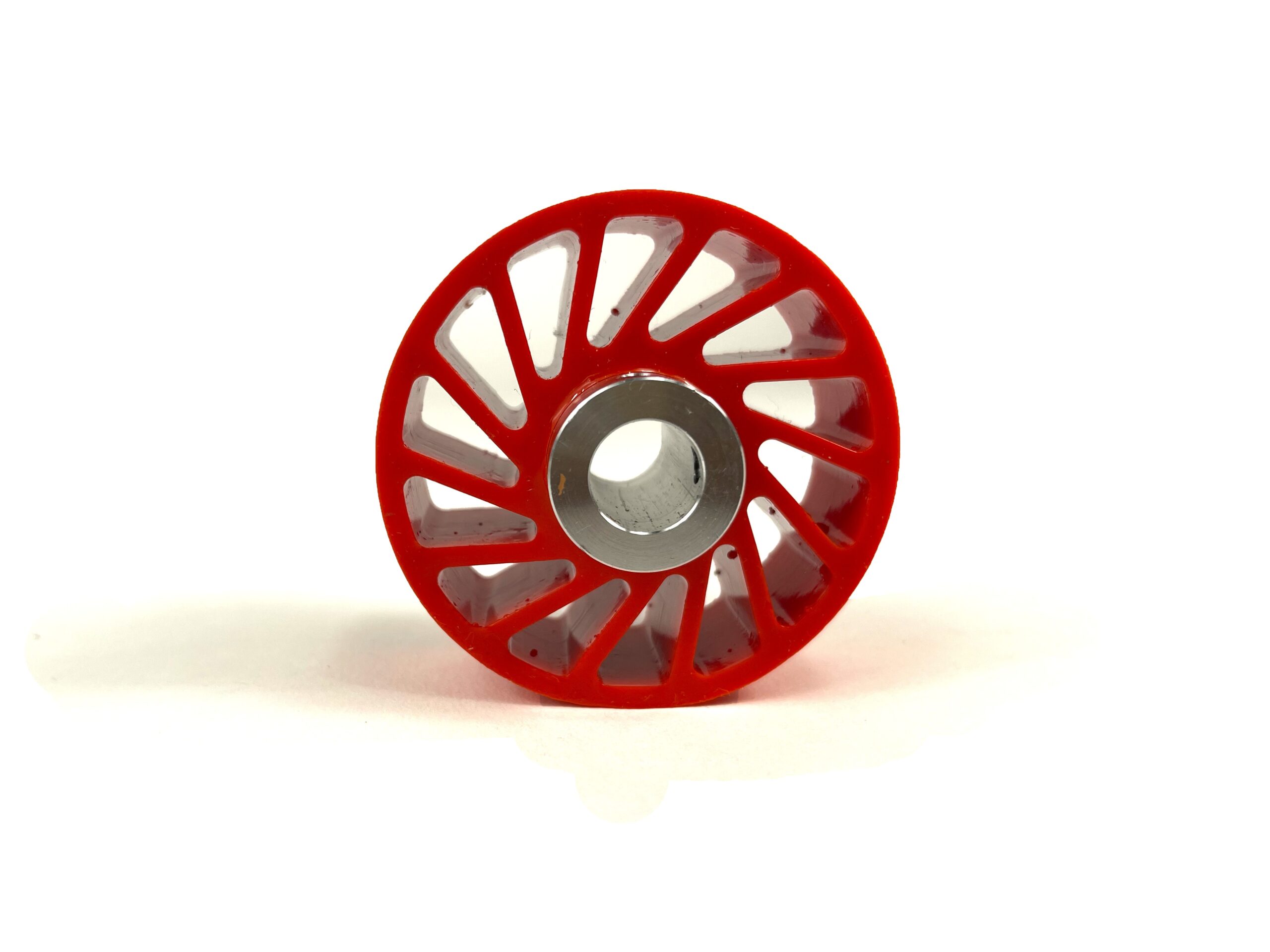

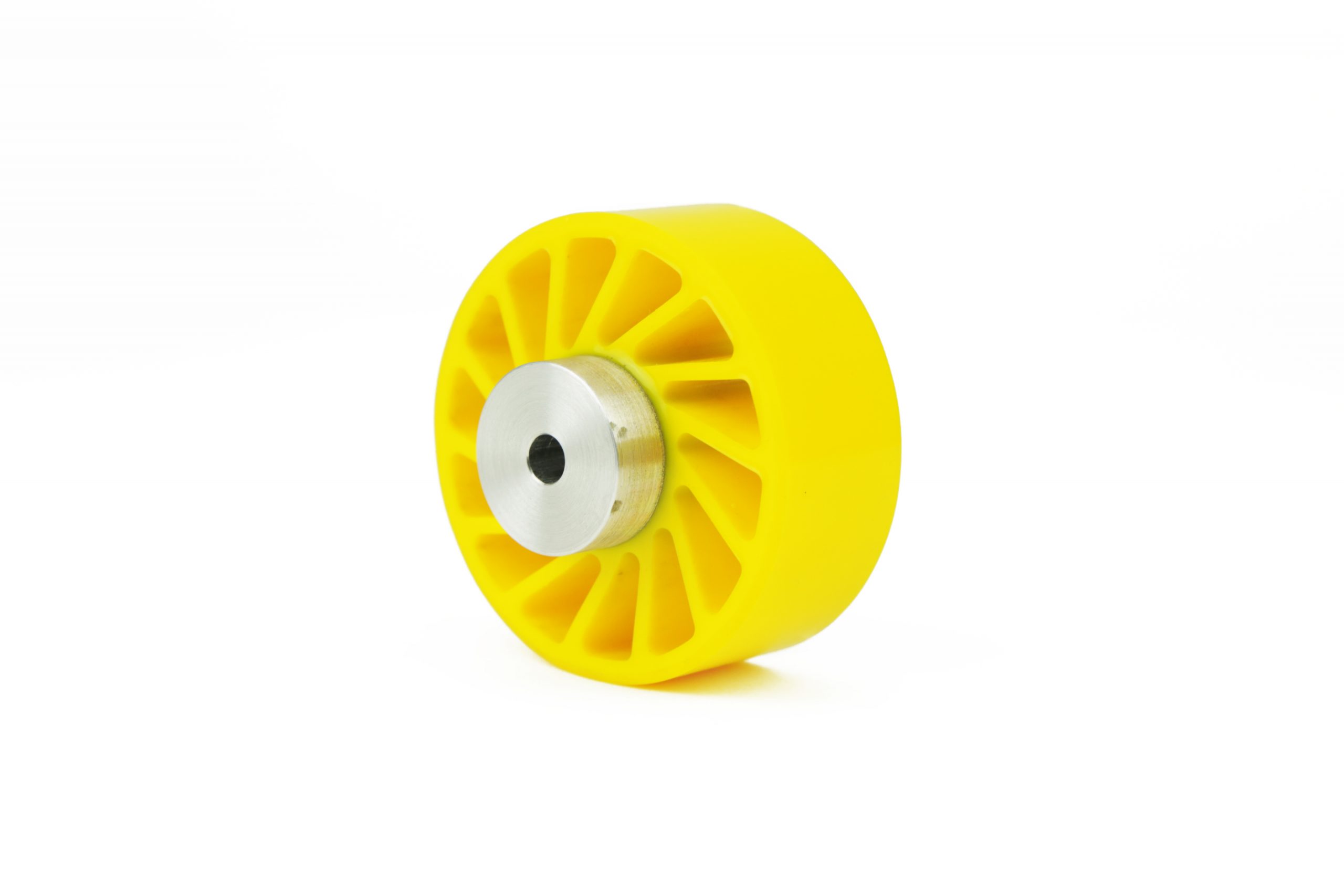

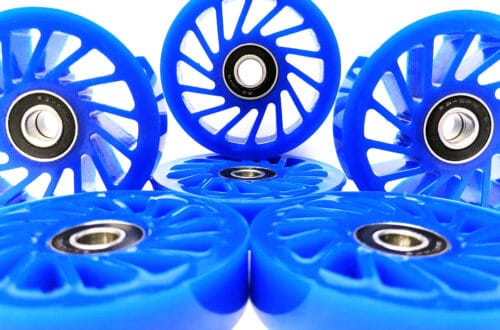

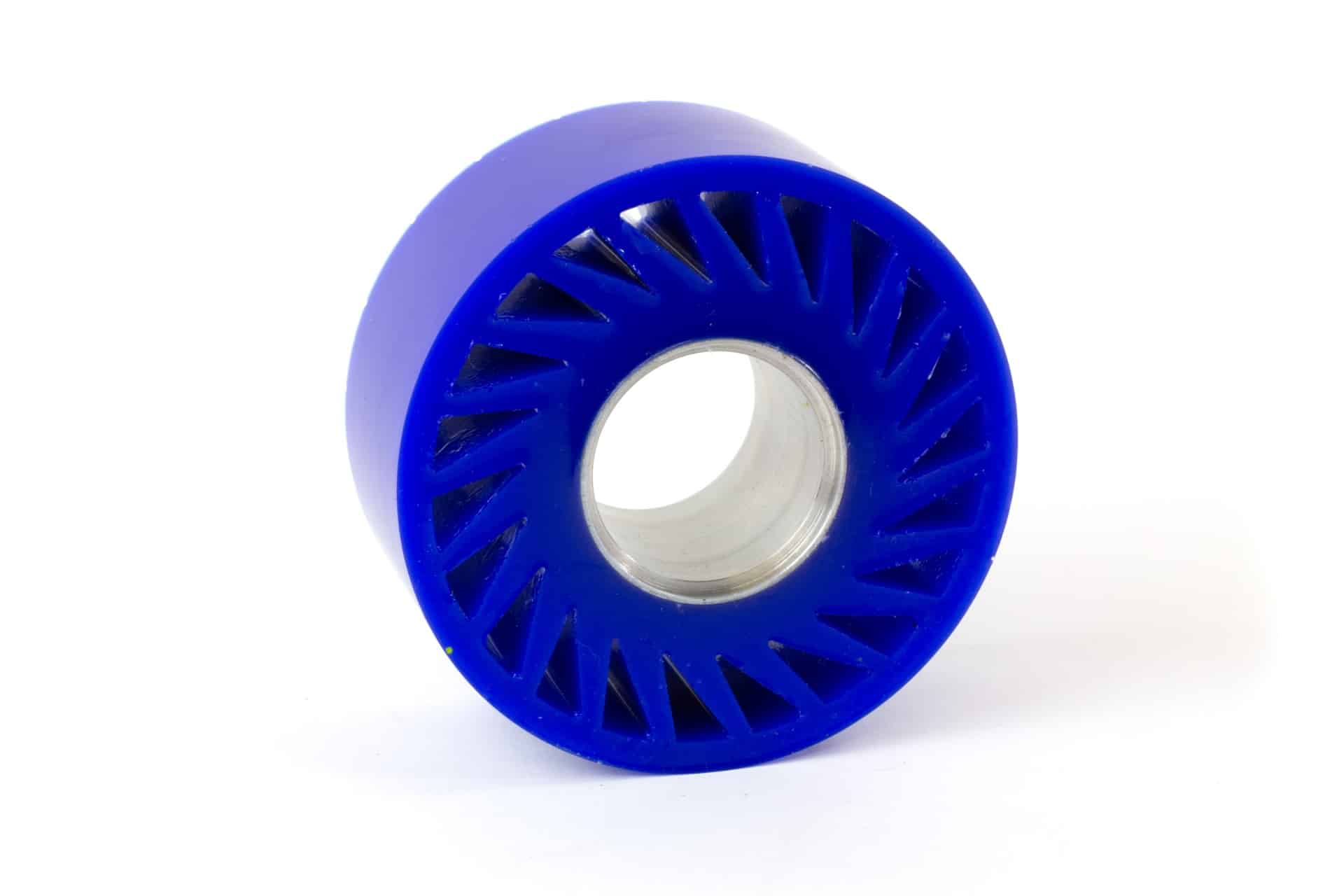

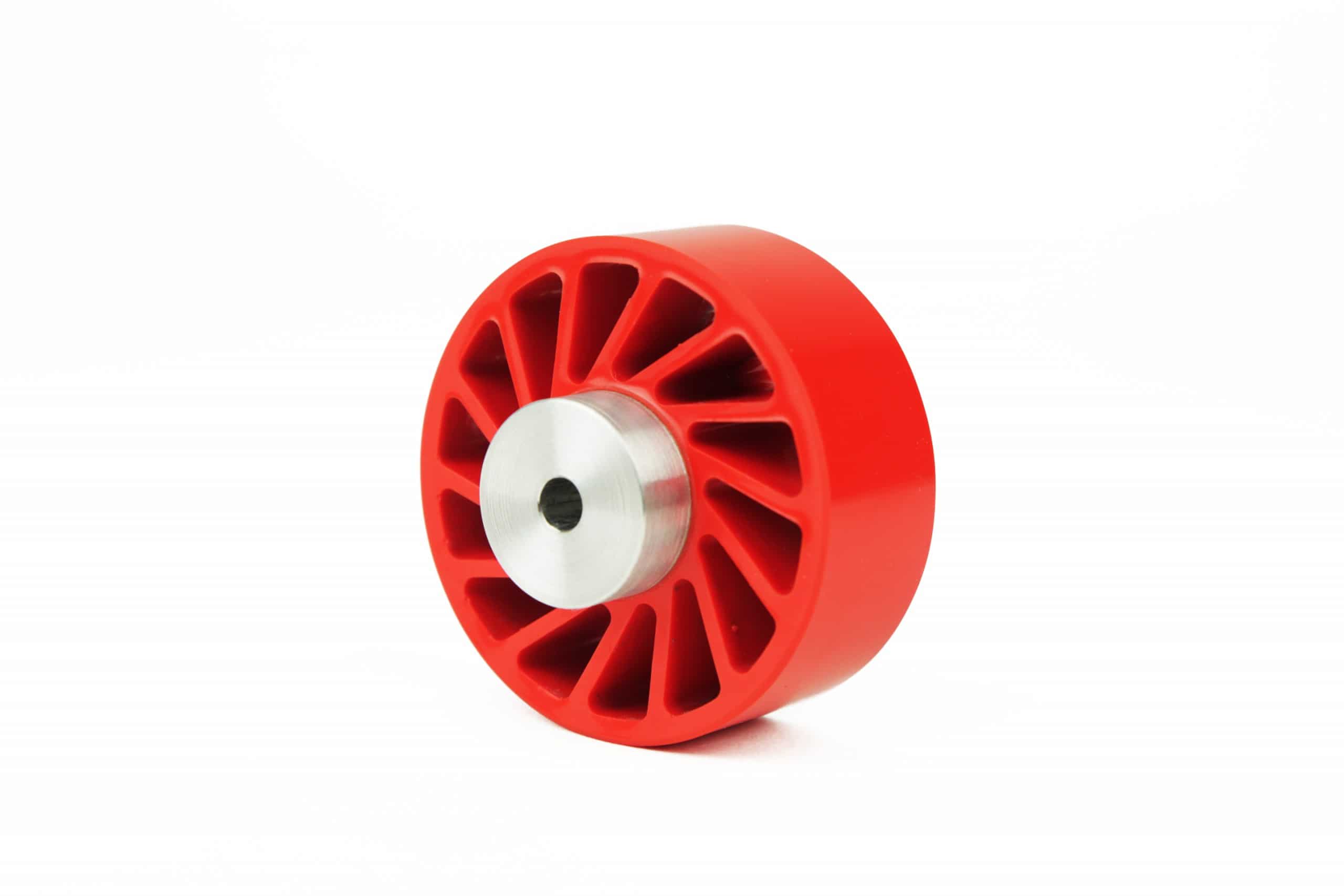

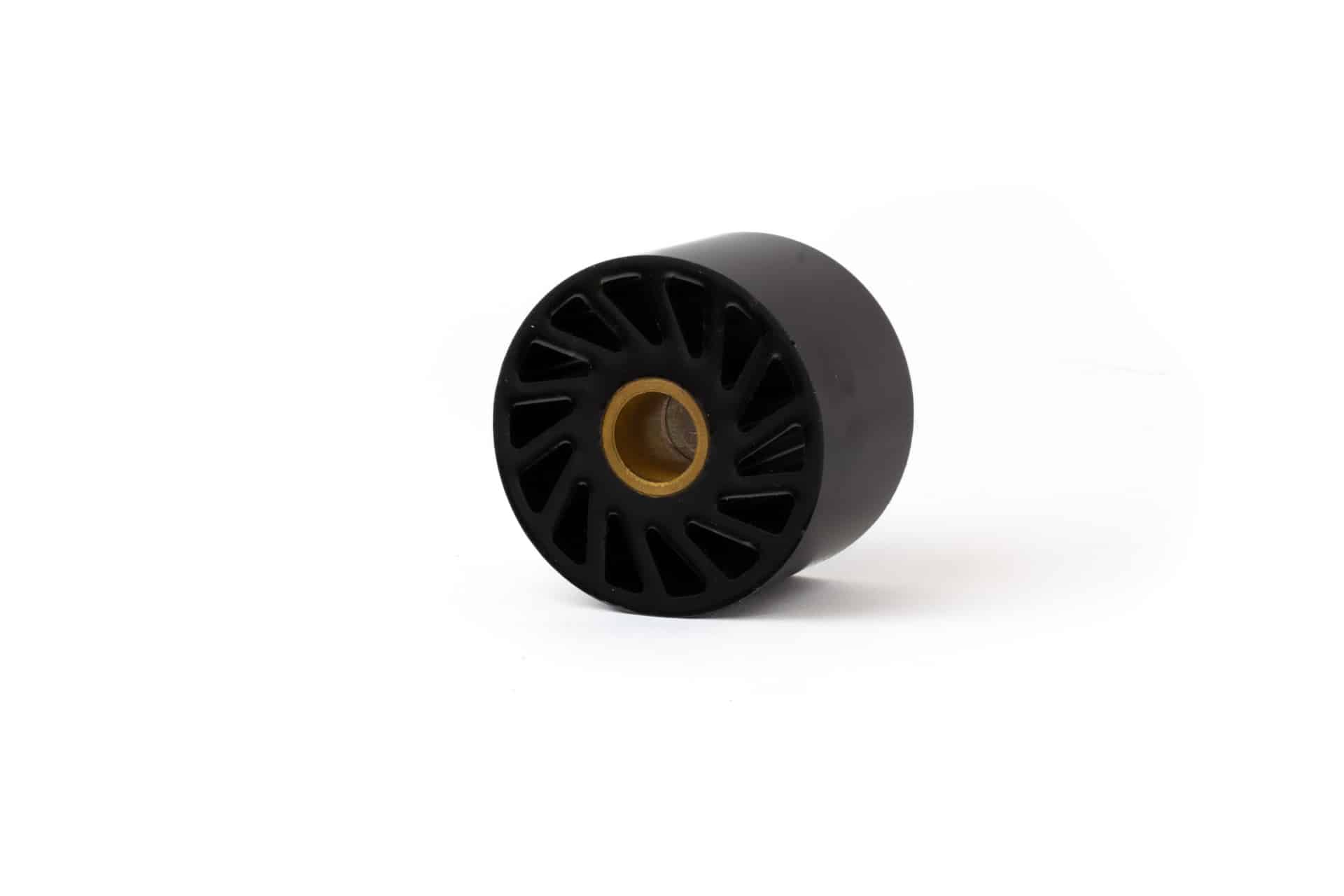

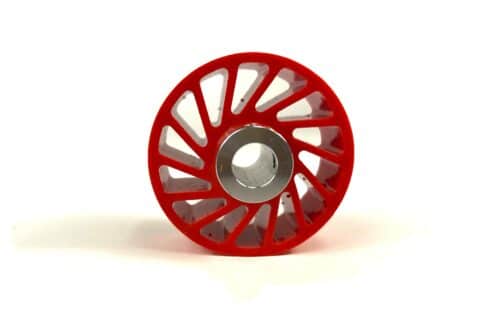

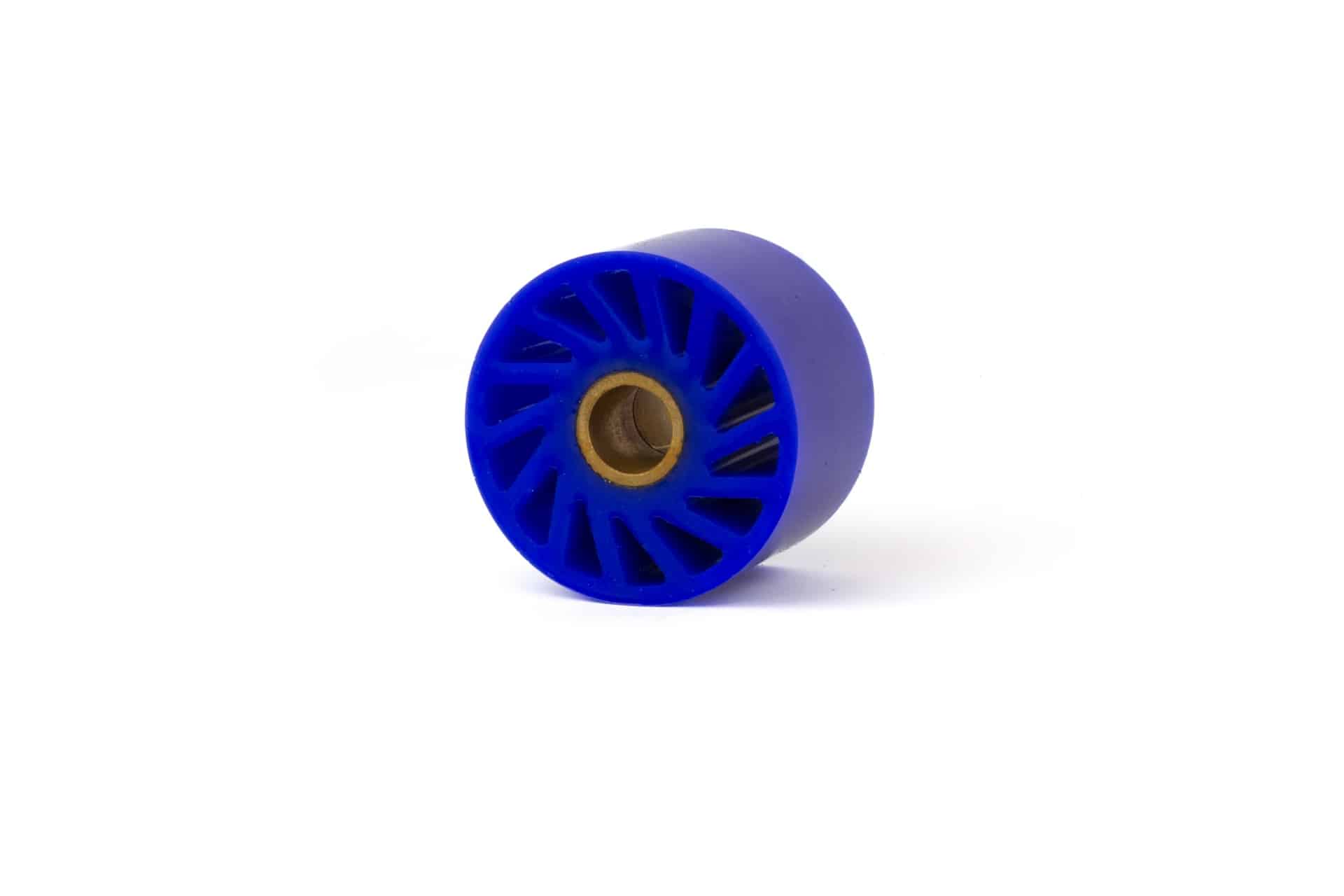

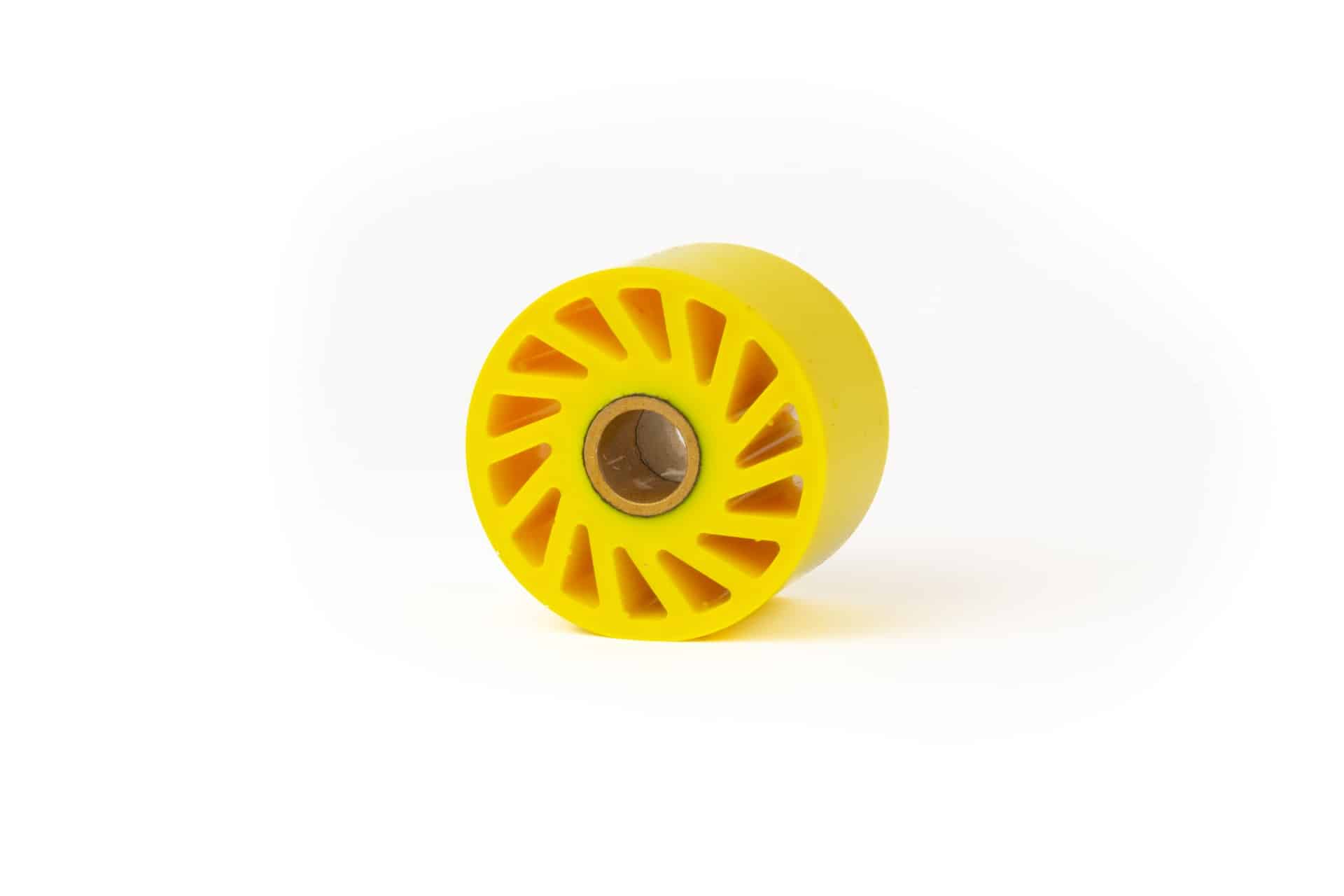

ML6® No Crush Wheels and Rollers (otherwise referred to as Spacer Wheels and Zero Crush Rollers) are excellent choices for usage as bottle/material spacing wheels, feed rolls, hold down rolls, transfer section rollers, and much more.  ML6 Precision Polyurethane by Meridian Laboratory is specially formulated for industrial use in production and manufacturing operations – remaining flexible, while providing excellent durability and tolerances.

nocrush

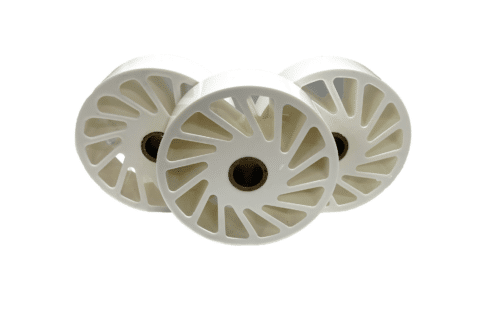

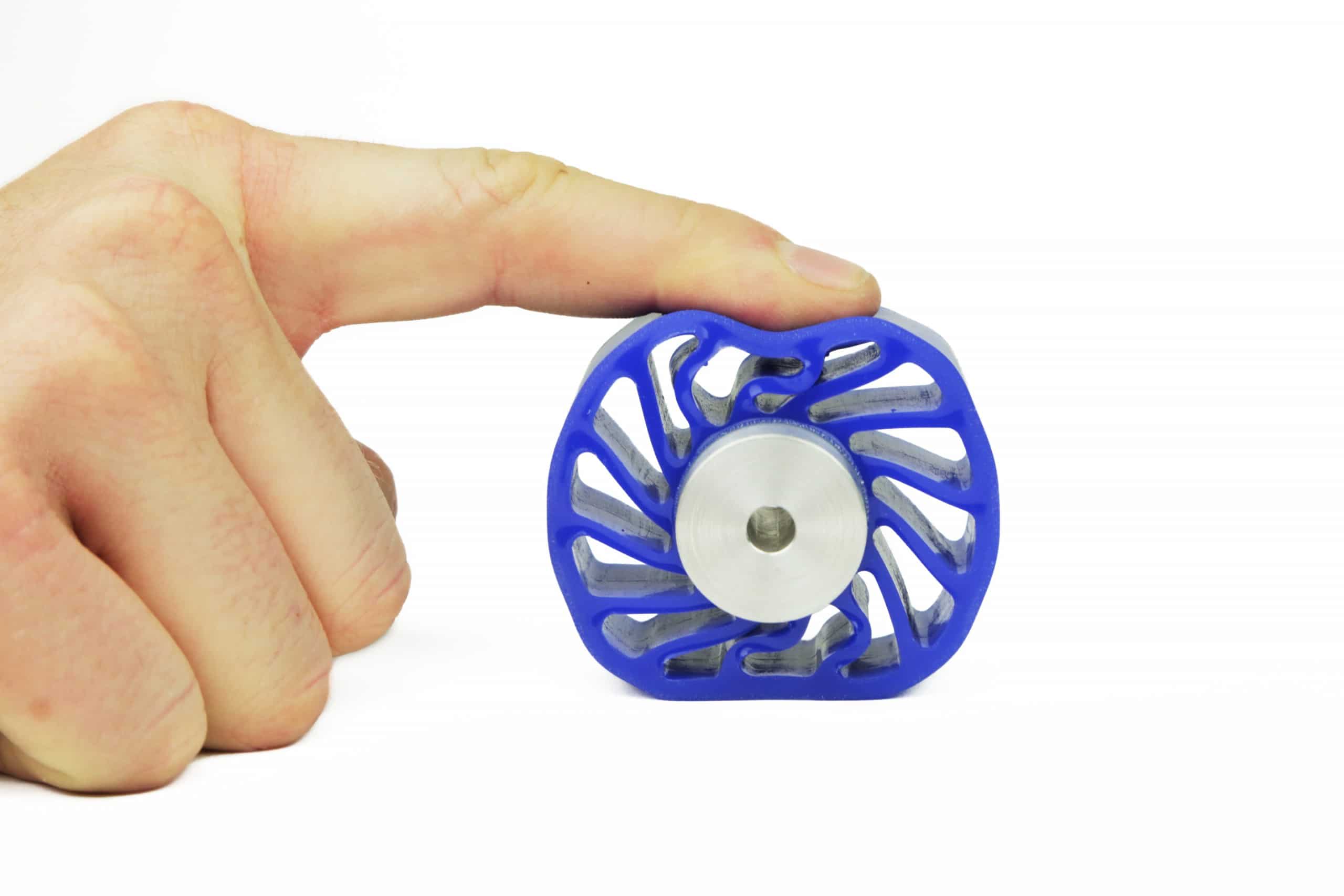

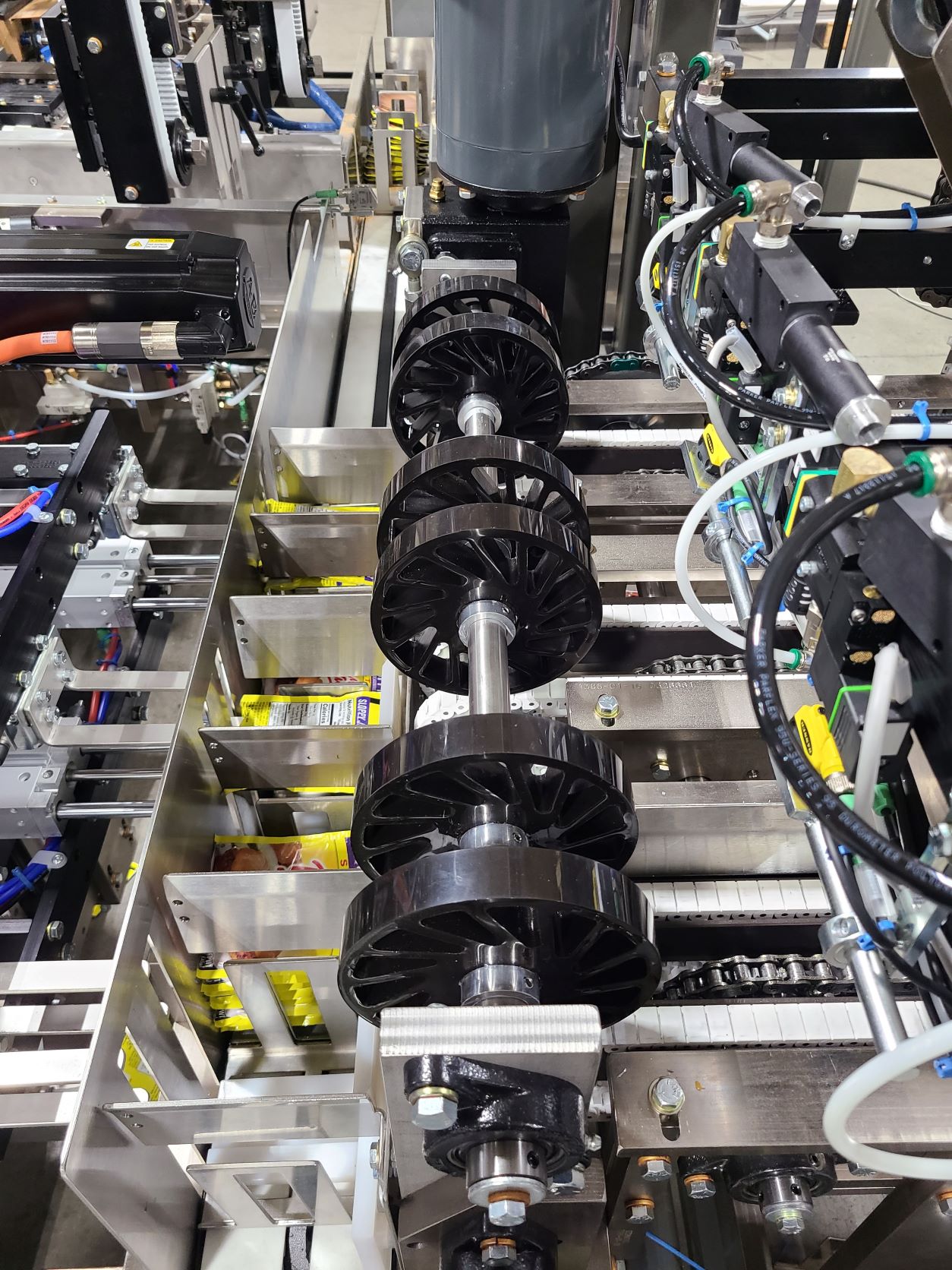

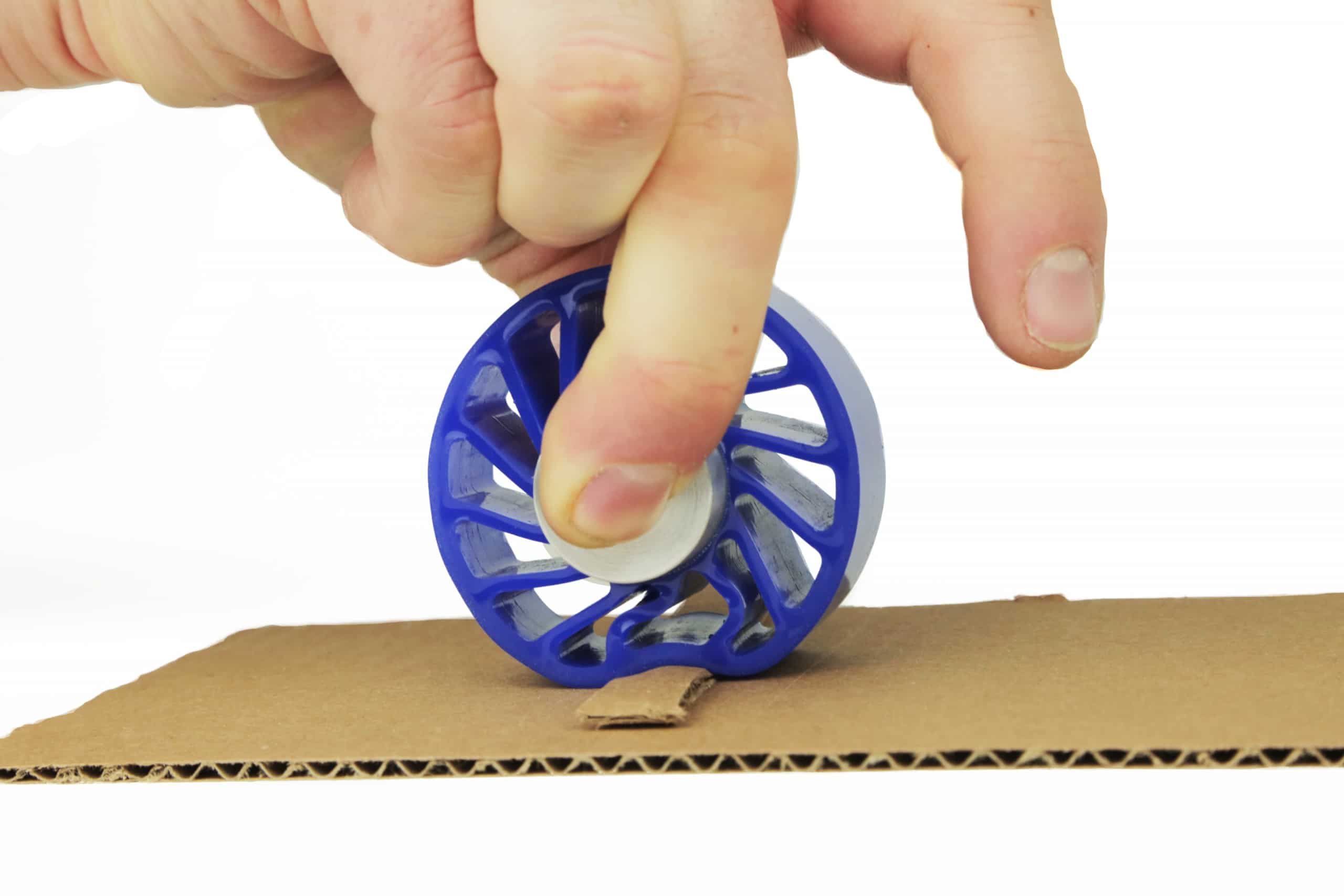

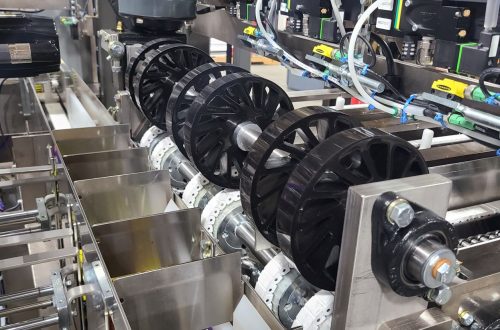

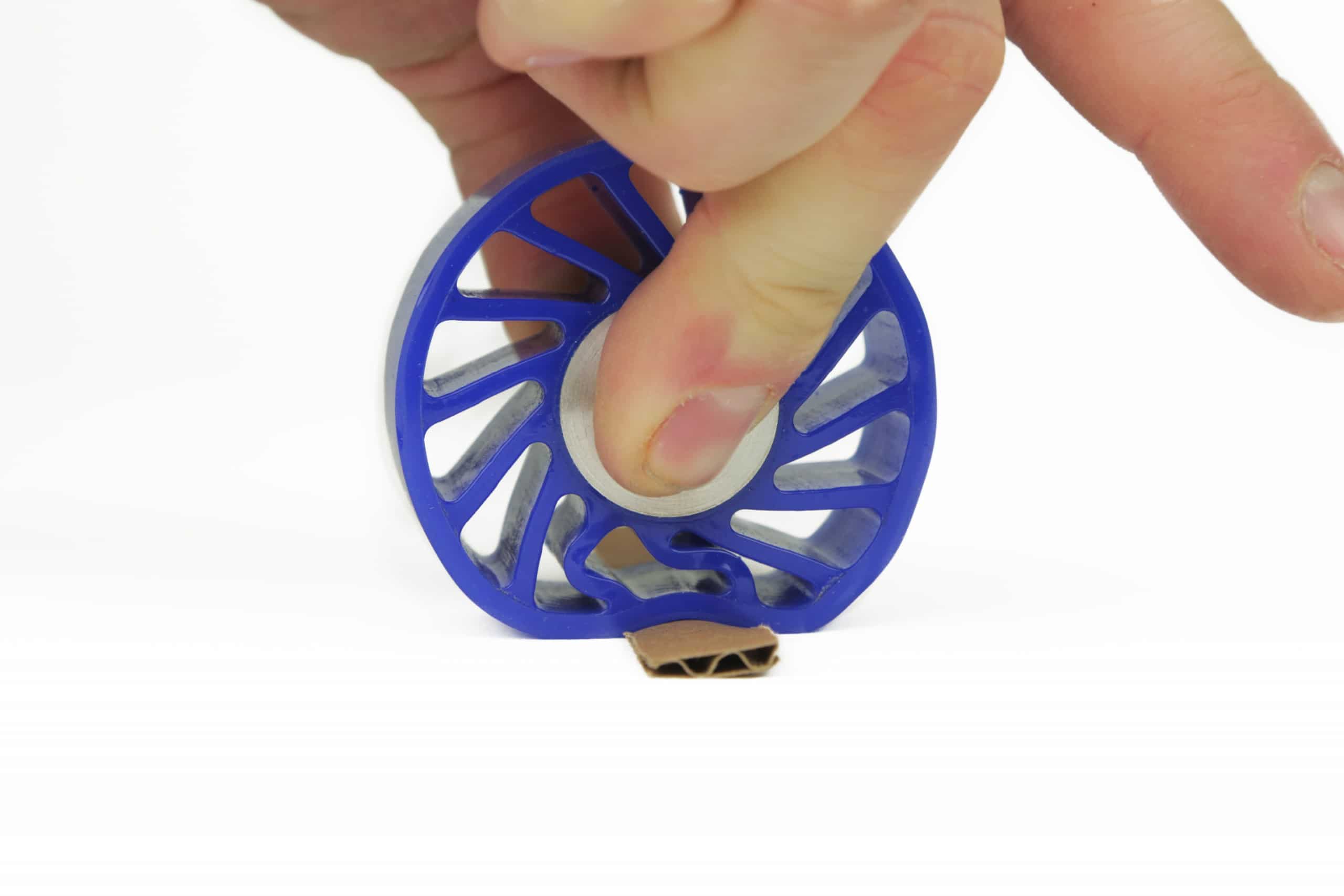

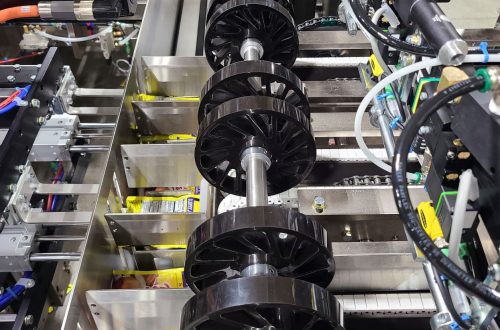

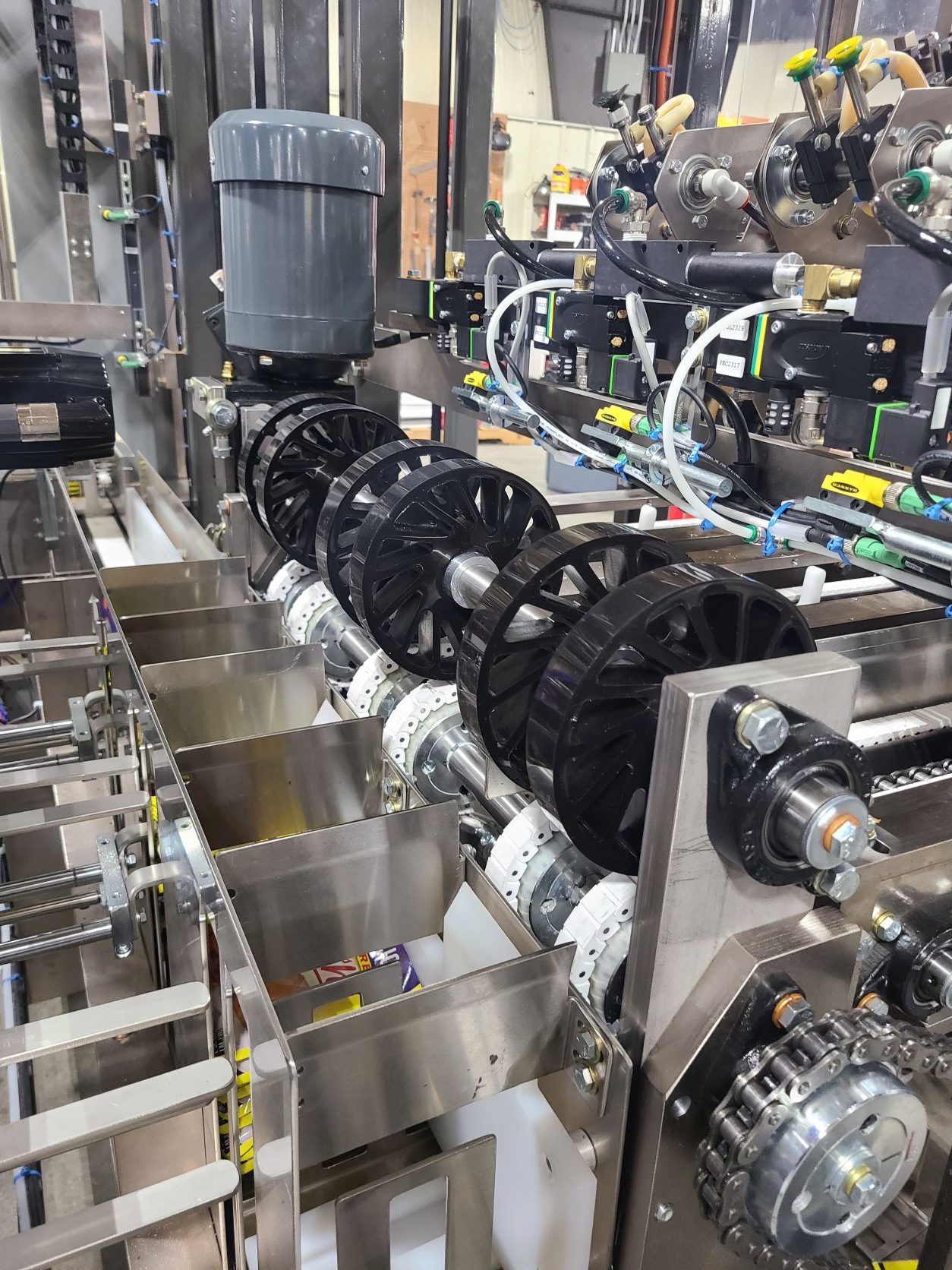

ML6 Zero Crush Rollers can be used in a wide variety of methods and industries from mailroom equipment, to bottling and labeling equipment, and more. They solve problems for the packaging industry too, as seen in the GIF here, these innovative wheels are designed to flex and protect materials being driven, while delivering reduced wear and increased longevity.

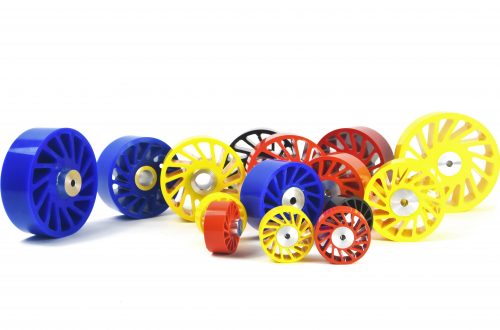

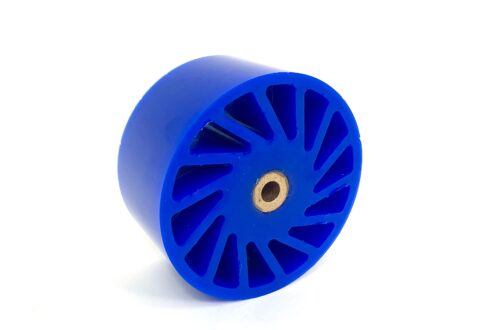

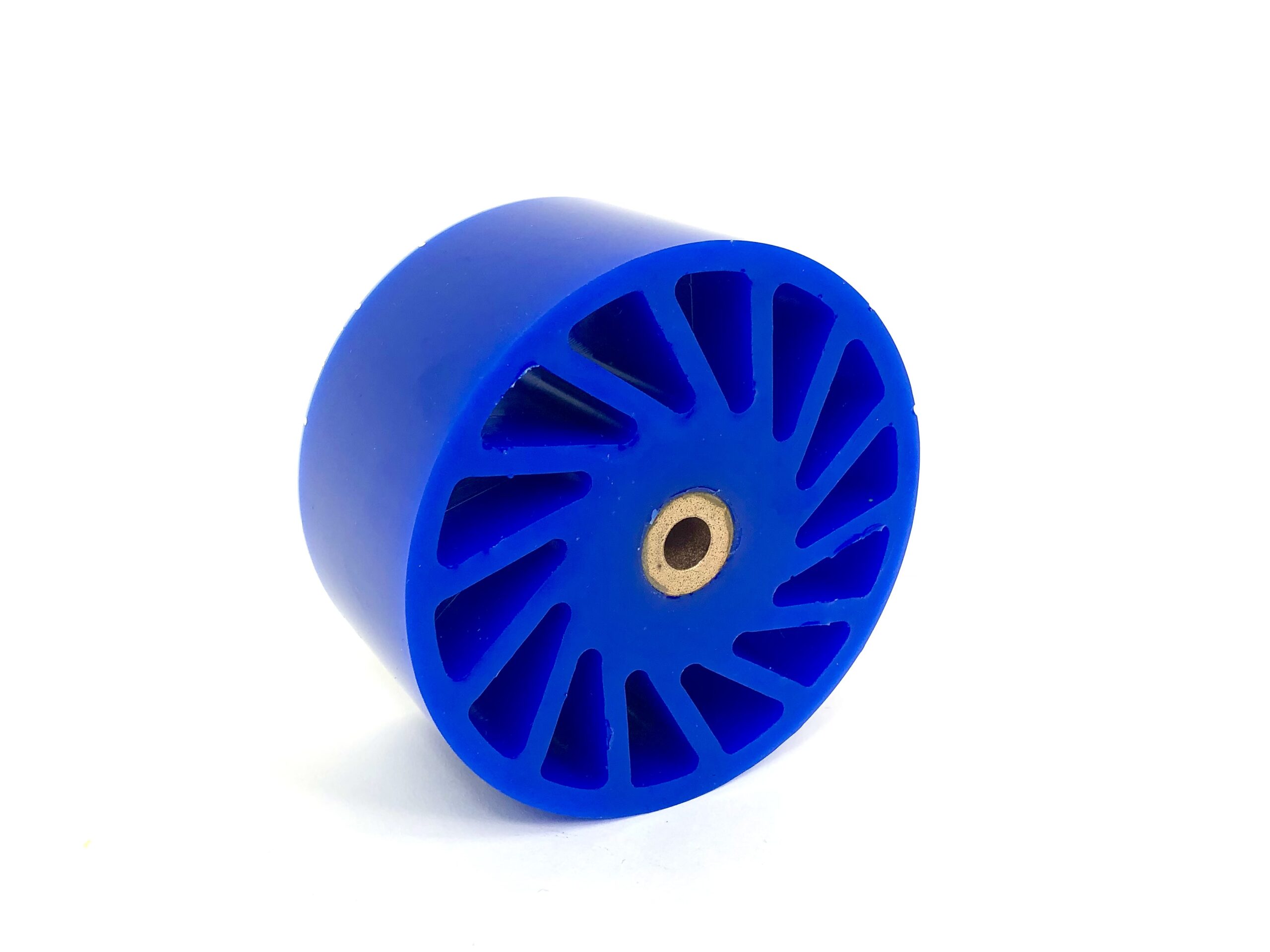

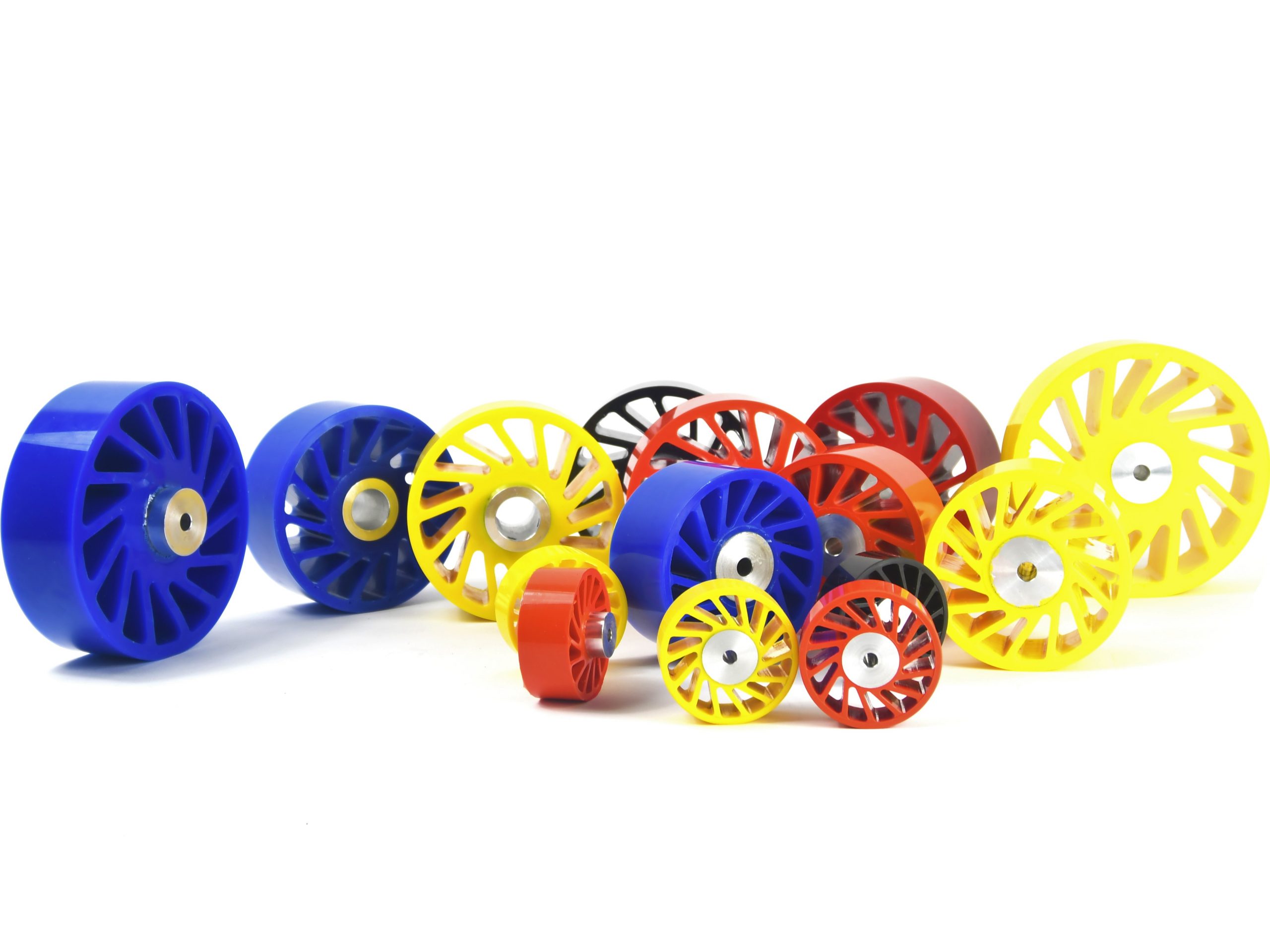

ML6 Spacer Wheels by Meridian Laboratory are available in a wide variety of sizes ranging from 2.50″ to 6″ outside diameter, up to 2″ in width, and bore sizes from 0.250″ to 1.00″. Meridian Laboratory can also manufacture custom bore sizes (including Metric sizes) quickly and cost effectively. Click here to shop online.

Highly Customizable Spacer Wheels

Meridian Laboratory exceeds conventional custom molded polyurethane manufacturers with its ability to deliver quick, precise, yet cost effective prototypes and low volume parts. Through innovative manufacturing techniques Meridian Laboratory can scale output with time as need and quantity grows. This allows Meridian Laboratory to adequately support spacer wheel projects from single prototypes to high-volume production, in an efficient and cost effective way.

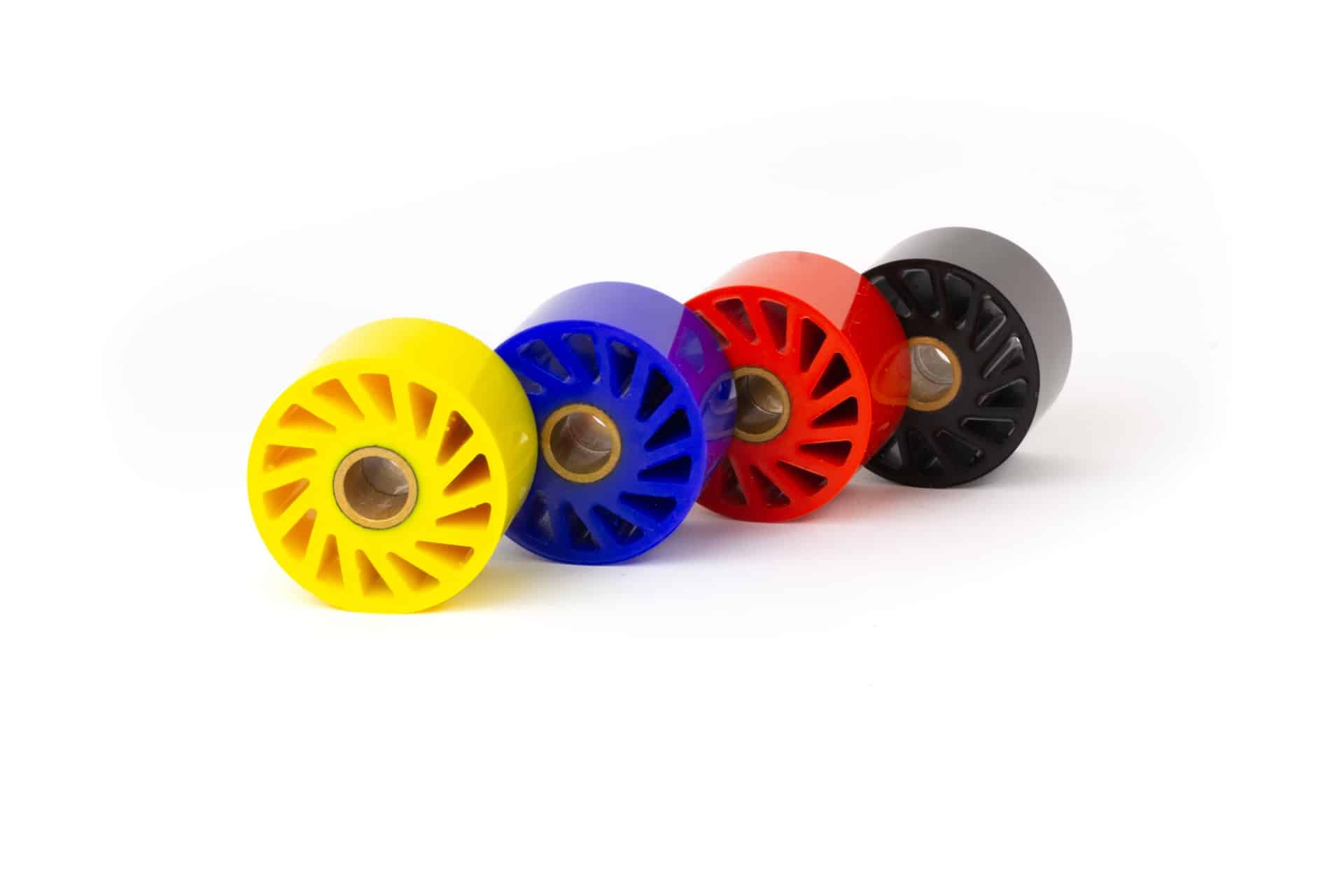

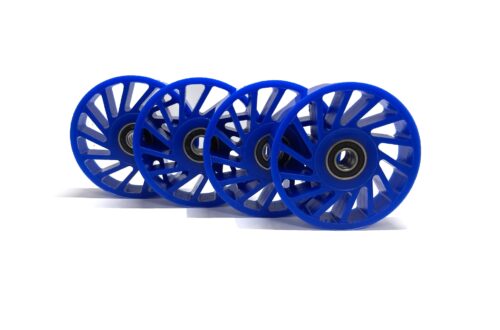

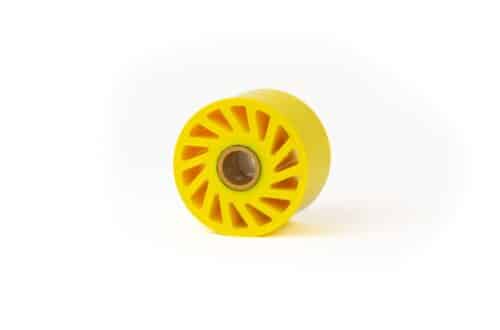

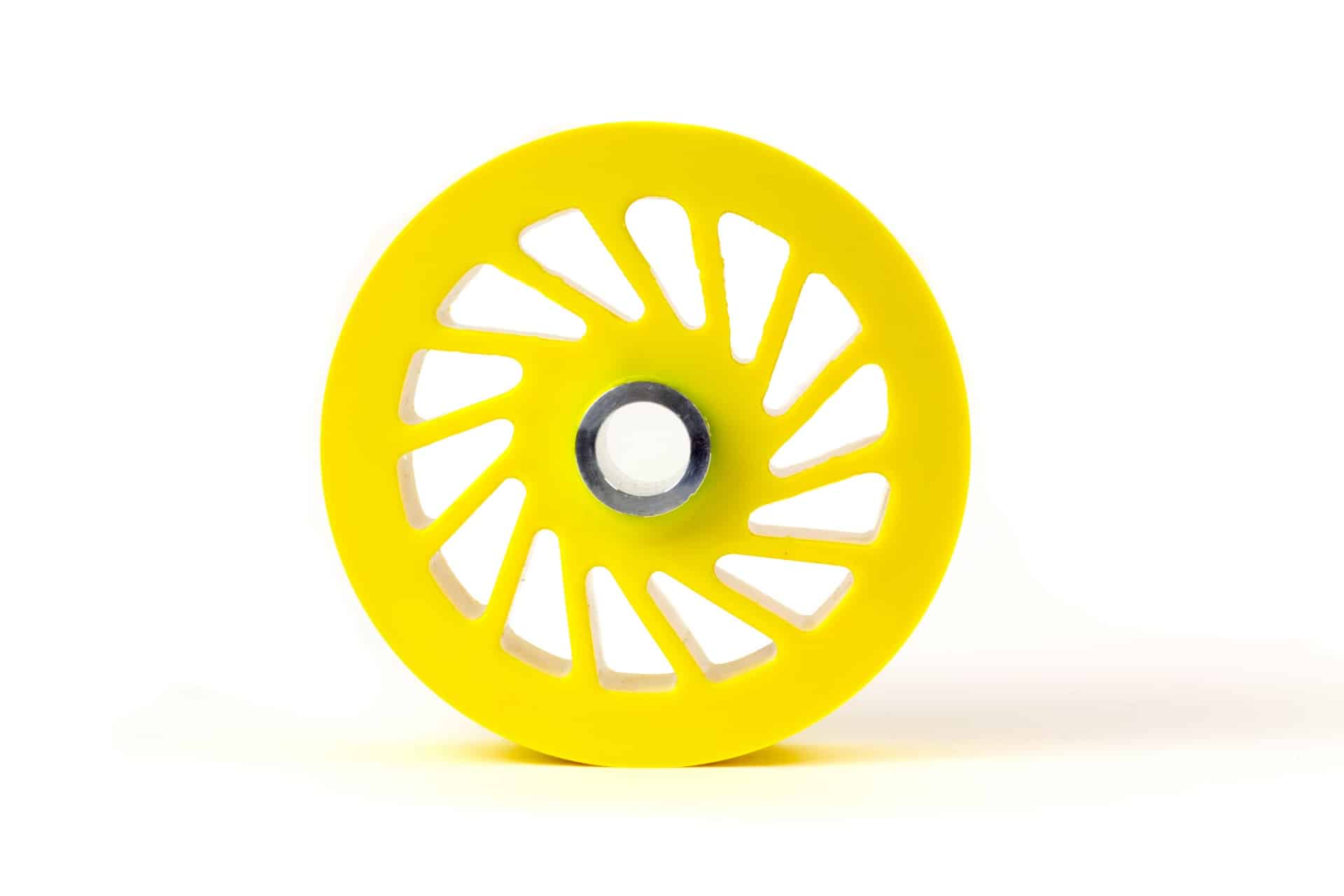

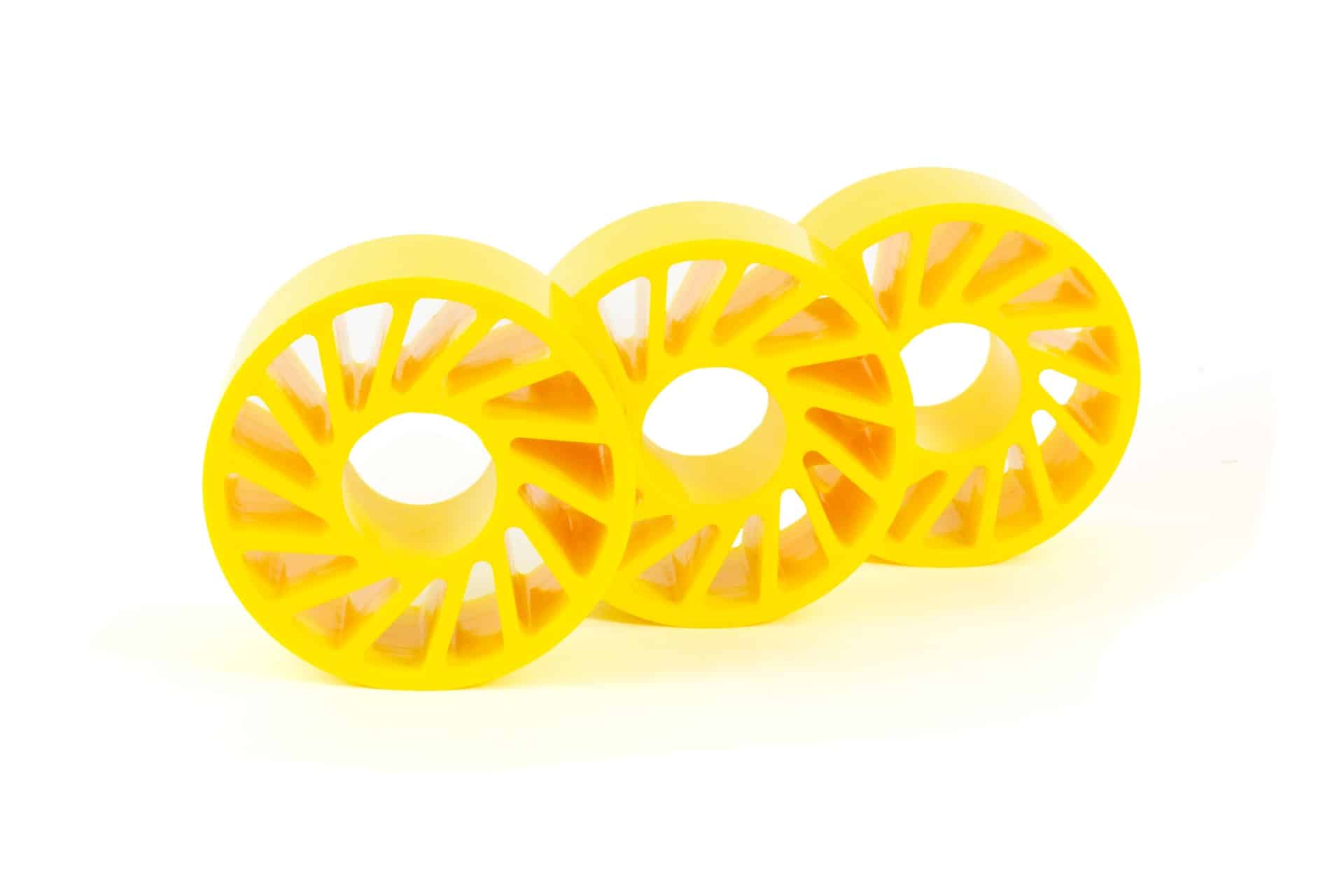

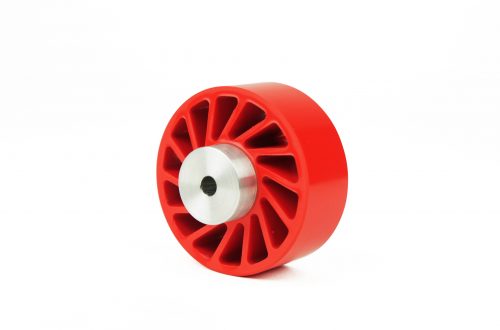

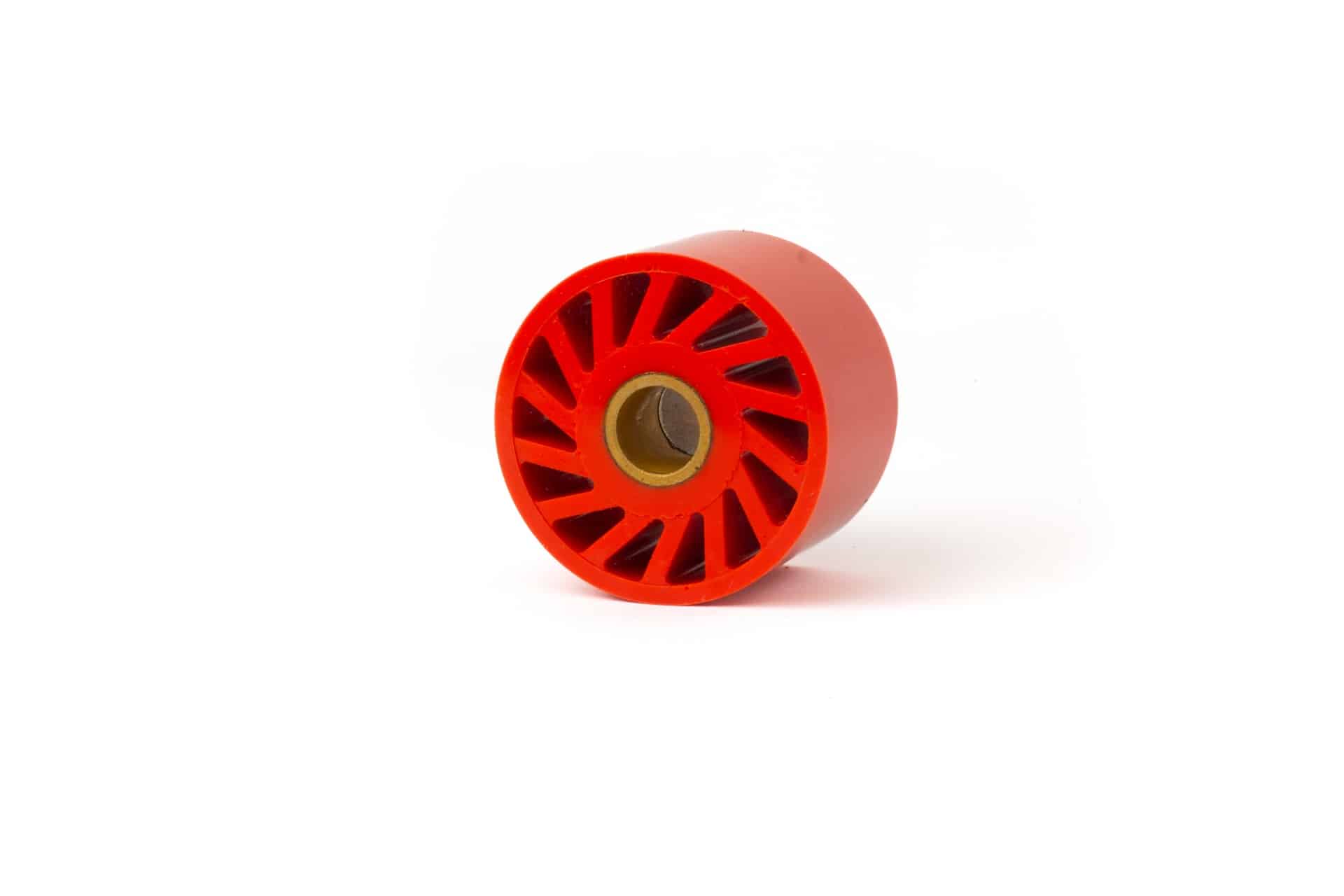

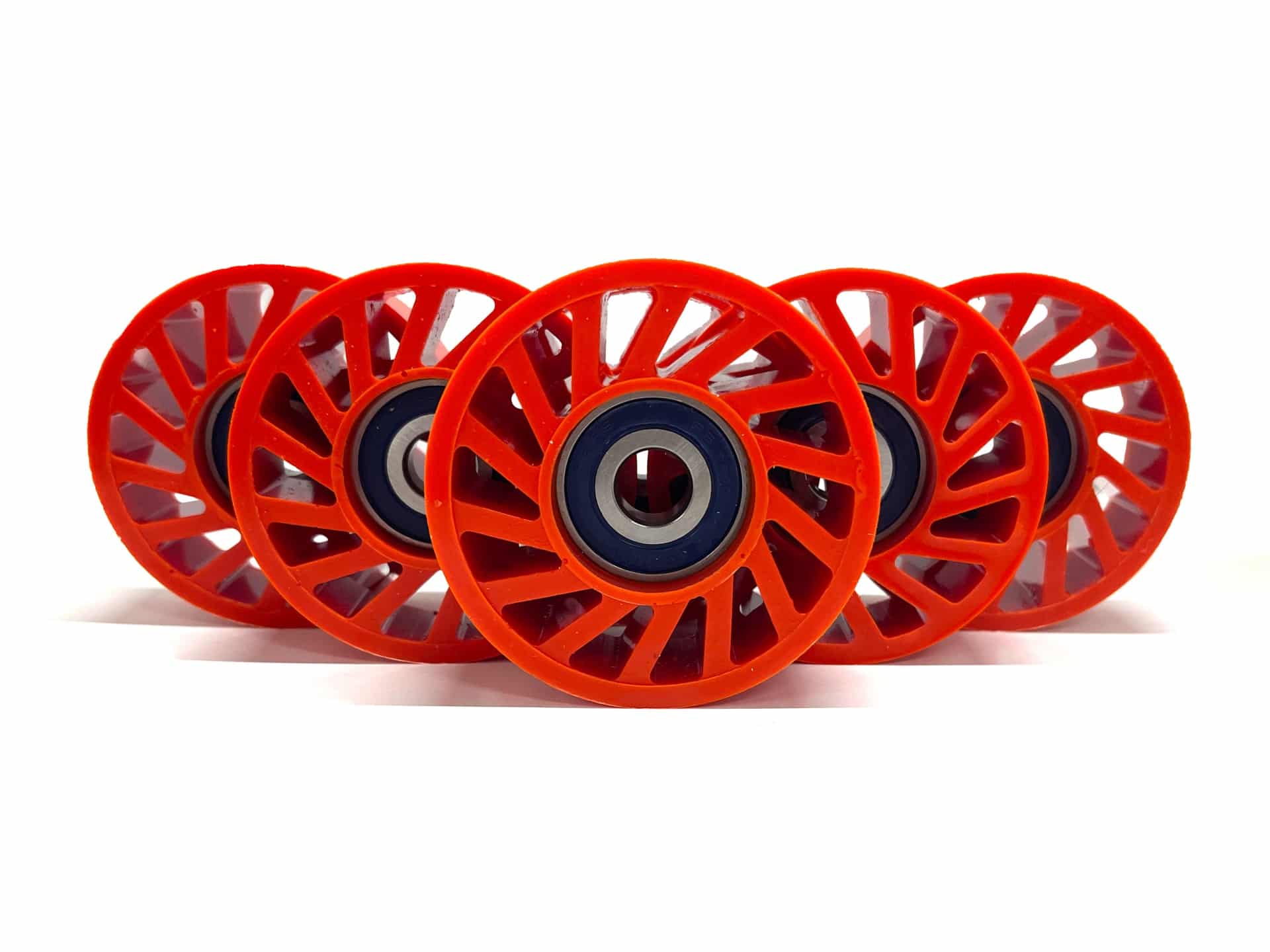

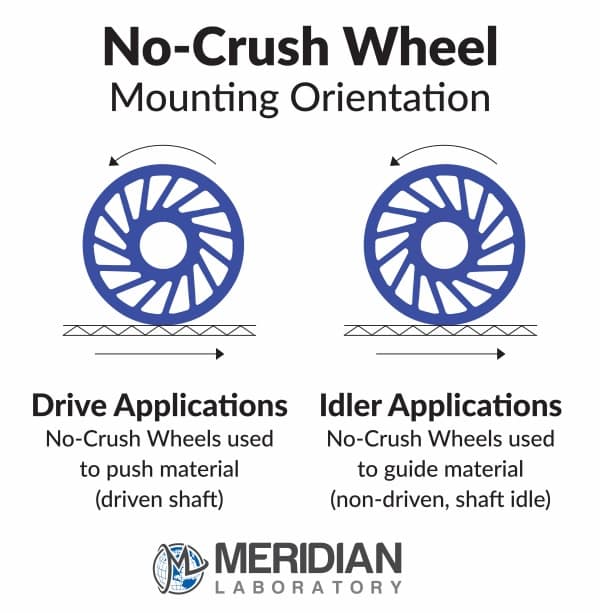

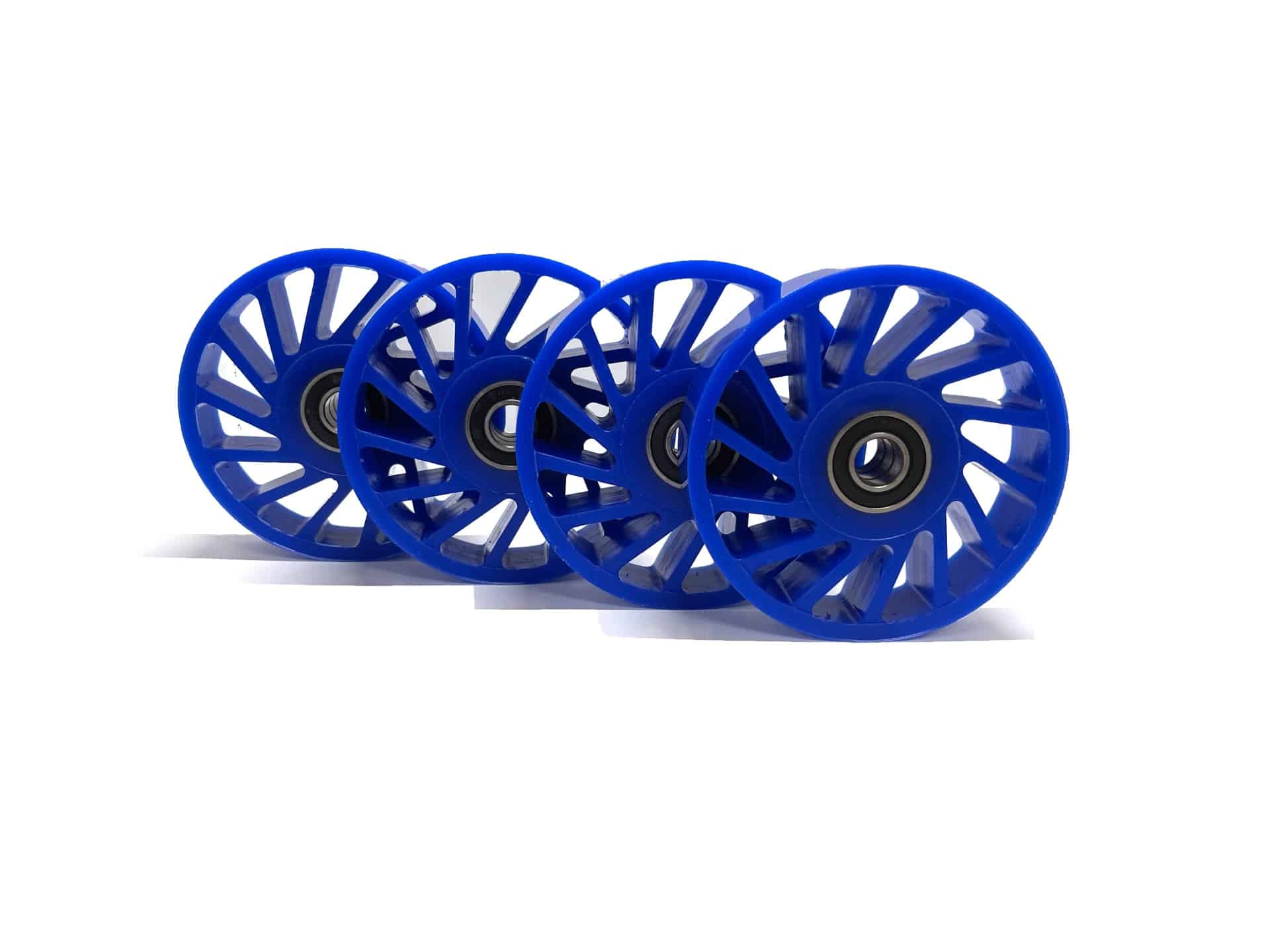

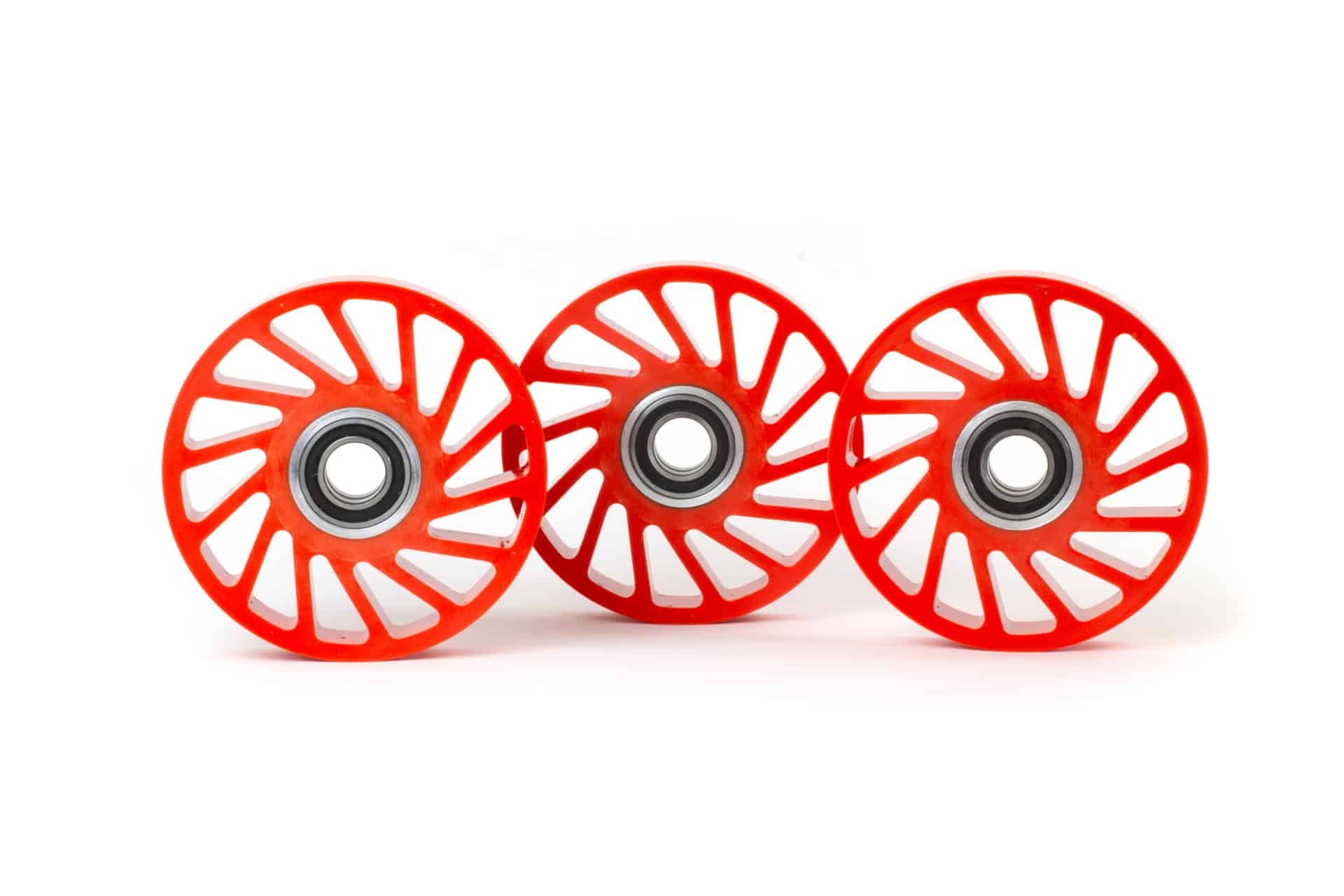

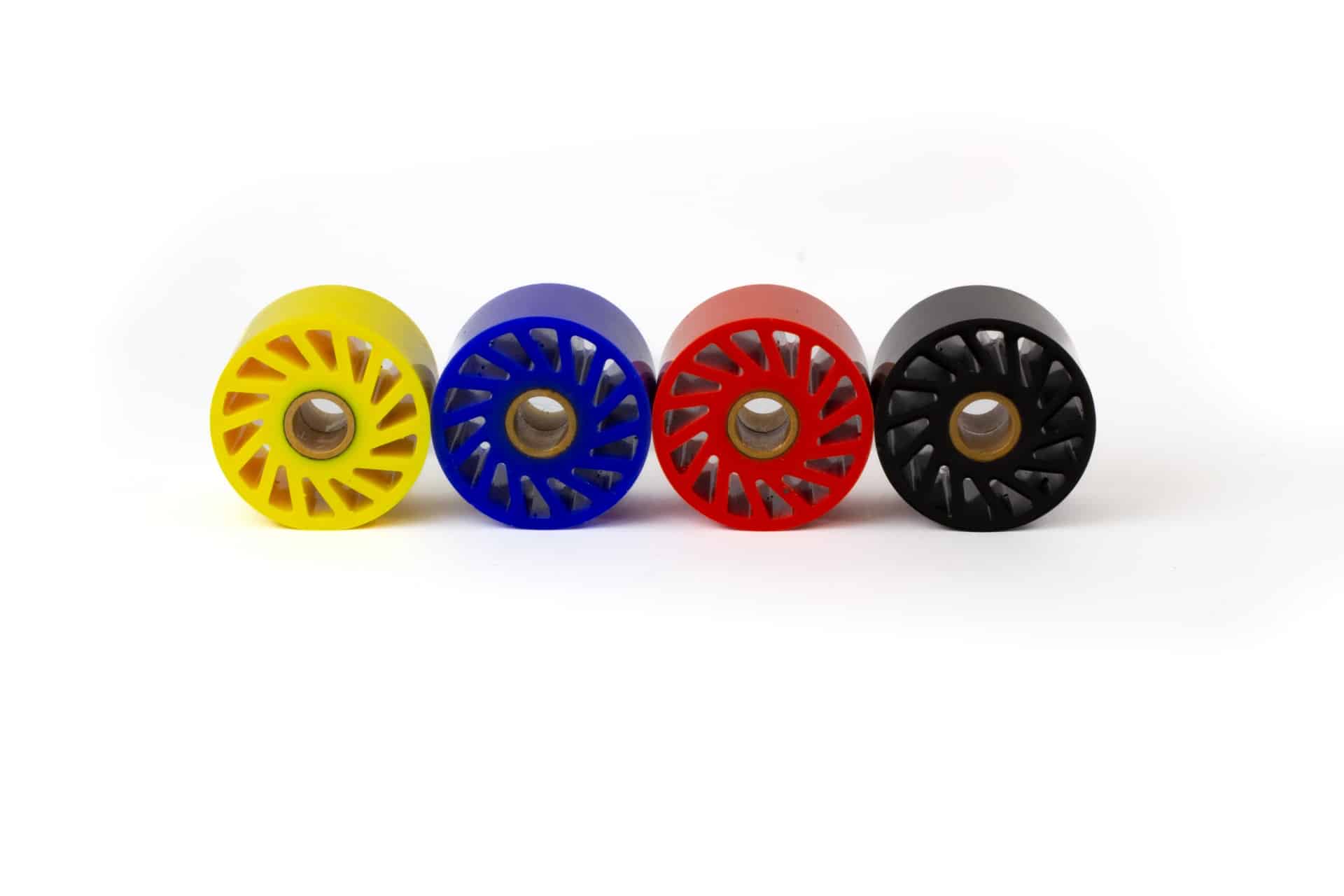

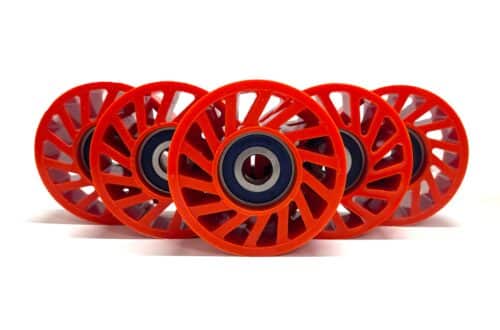

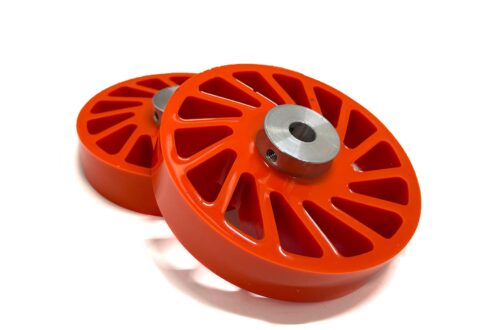

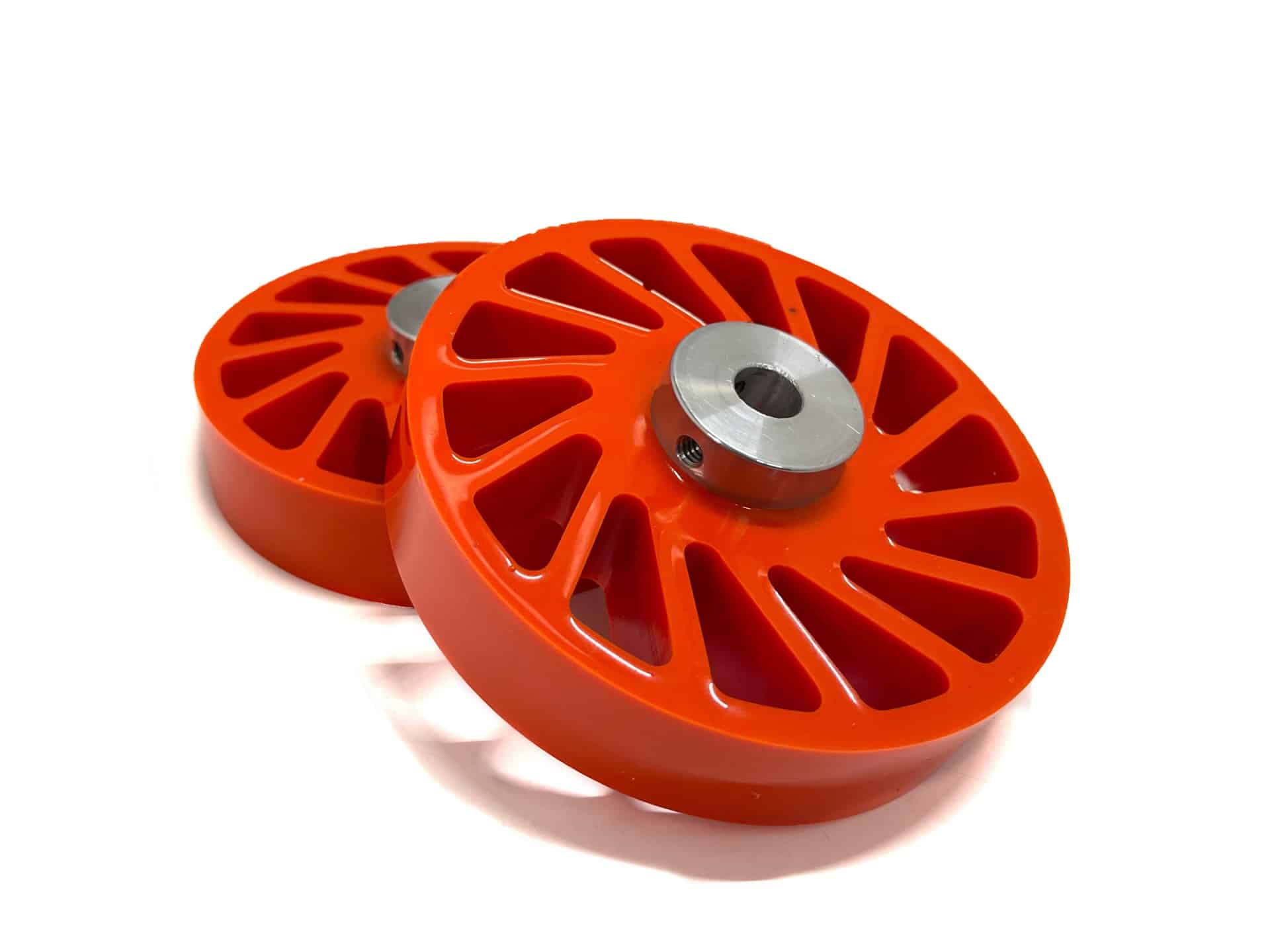

ML6’s design flexibility extends from custom sizes, colors, and durometers to core materials. Steel cores are common for spacer wheels throughout the industry, however Meridian Laboratory can deliver parts with bushings, bearings, multiple core materials (aluminum, steel, stainless steel, nylon, Delrin, etc.), or even without a core – giving you the exact solution needed for your specific project. Additionally, design patterns can be reversed so parts can go back-to-back on a common shaft.

Meridian Laboratory has delivered industry leading precision polyurethane rollers and wheels since 1963, with tens of thousands of different size options and variety. ML6 delivers precision molded polyurethane parts ranging from 1 to 1M parts in a quick and cost-effective way. Contact Meridian Laboratory today to learn how we can solve your needs!

Hardness Options
40A, 55A, 70A

Click to learn more about durometers

Custom colors available on request

 ML6-40AML6-55AML6-70AML6-80AML6-90AML6-60D
Hardness (+/- 5)40A55A70A80A90A60D
Ultimate Elongation (%)640540540640500300
Ultimate Tensile (PSI)320053005600690062006400
Tear Strength, pli Die "C"150244332421568620
Split195192175134125
Compression Modulus (Young's Modulus)38083016601990646016200
Compression Set (%
22 Hrs. @ 158ºF)
017161830
Bashore Rebound (%)504137313552
Abrasion Loss, mm20022415994101115

For more information, contact Meridian Laboratory

Applications

  • Cardboard and Paper Manufacturing and Processing
  • Production and Packaging Machinery and Equipment
  • Sensitive or Fragile Materials Handling/Movement
  • Automated Production Line Applications
  • Replacement for any standard wheel or roller function
  • Bottle Spacing
No Crush Wheel, Zero Crush Wheel, Pacing Wheel, Pacer Wheel, Spacing Wheels, Spacer Wheel, Bottle Spacer Wheel

Standard/Imperial Zero Crush Wheel Sizes

NoCrush 2021

Part # (Specify Durometer as 'D') Outside Diameter (OD)Width (WD)Bore Diameter (ID)Durometer (Specify as 'D' in Part #)
NCW-300-D2.50"1.00"0.250"40A | 55A | 70A | 80A | 90A | 75D
NCW-310-D0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-320-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-330-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-340-D

4.00"
1.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-350-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-360-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-370-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-380-D1.000"40A | 55A | 70A | 80A | 90A | 75D
NCW-390-D2.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-400-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-410-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-420-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-430-D1.000"40A | 55A | 70A | 80A | 90A | 75D
NCW-440-D


5.00"
1.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-450-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-460-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-470-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-480-D1.000"40A | 55A | 70A | 80A | 90A | 75D
NCW-490-D2.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-500-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-510-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-520-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-530-D1.000"40A | 55A | 70A | 80A | 90A | 75D
NCW-540-D


6.00"
1.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-550-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-560-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-570-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-580-D1.000"40A | 55A | 70A | 80A | 90A | 75D
NCW-590-D2.00"0.375"40A | 55A | 70A | 80A | 90A | 75D
NCW-600-D0.500"40A | 55A | 70A | 80A | 90A | 75D
NCW-610-D0.625"40A | 55A | 70A | 80A | 90A | 75D
NCW-620-D0.750"40A | 55A | 70A | 80A | 90A | 75D
NCW-630-D1.000"40A | 55A | 70A | 80A | 90A | 75D
Custom Not seeing what you need? Contact Meridian Laboratory – standard and custom solutions with no minimum order quantity, delivered in as little as 5 days!

WHERE TO PURCHASE ML6

Metric Zero Crush Wheel Sizes

NoCrush 2021

Part # (Specify Durometer as 'D') Outside Diameter (OD)Width (WD)Bore Diameter (ID)Durometer (Specify as 'D' in Part #)
NCWM-300-D63.5mm25.4mm8mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-310-D10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-320-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-330-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-340-D101.6mm25.4mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-350-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-360-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-370-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-380-D25mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-390-D50.8mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-400-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-410-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-420-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-430-D25mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-440-D127mm25.4mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-450-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-460-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-470-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-480-D25mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-490-D50.8mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-500-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-510-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-520-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-530-D25mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-540-D152.4mm25.4mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-550-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-560-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-570-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-580-D25mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-590-D50.8mm10mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-600-D12mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-610-D15mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-620-D20mm40A | 55A | 70A | 80A | 90A | 75D
NCWM-630-D25mm40A | 55A | 70A | 80A | 90A | 75D
Metric units are approximateWant to speak with an ML6 expert today? Contact Meridian Laboratory – standard and custom solutions with no minimum order quantity, delivered in as little as 5 days!
